CCS1000 Digital Wired Conference Microphone System

WISHLIST
Digital Wired Conference Microphone System
Features
Employs digital technology as its core, with a built-in high-performance CPU for computational control.
3.5-inch IPS touchscreen with a user-friendly interface.
Powered by a high-performance switching power supply, long-distance transmission does not affect sound quality.
No addressing required, plug and play.
Anti-interference circuit design eliminates interference from mobile phone signals.
Supports USB recording and high-fidelity WAV data output.
Four microphone connections, each supporting 30 units, for a total of 120 units, with an unlimited number of chairmen. The number of speakers can be set from 1 to 12.
The chairman priority function key can be set to mute or disable delegate units.
Supports cascading expansion, facilitating the simultaneous use and shared management of multiple expansion systems.
The host computer can be connected to a central control system for adjusting conference parameters.
Supports multiple conference modes: FIFO (First In, First Out), LIFO (Last In, First Out), FREE (Fully Open), ONLY-C (Chairman), and LIMITED. Functions such as automatic shutdown and time-limited shutdown can be set.
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    Model: CCS1000

    Specifications

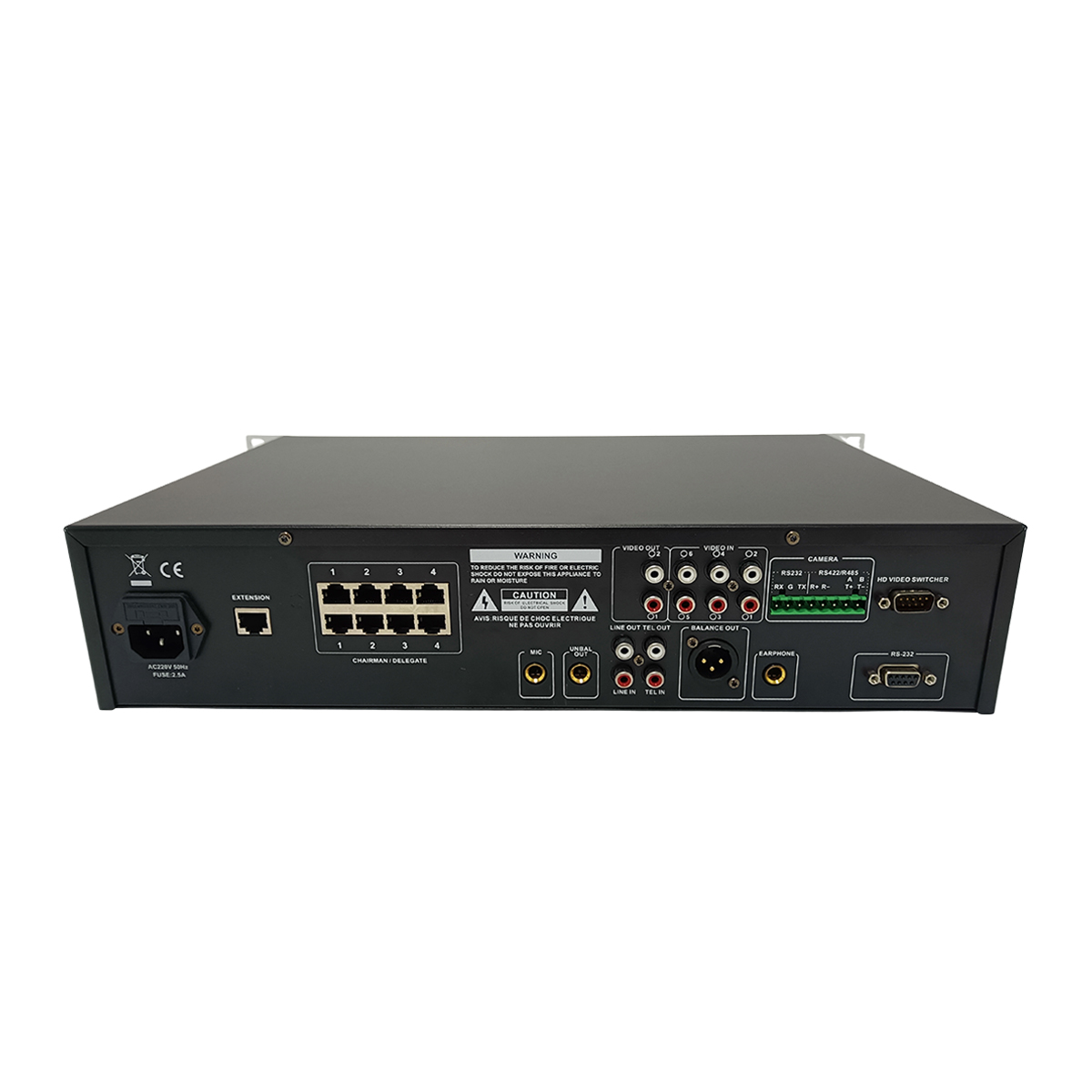

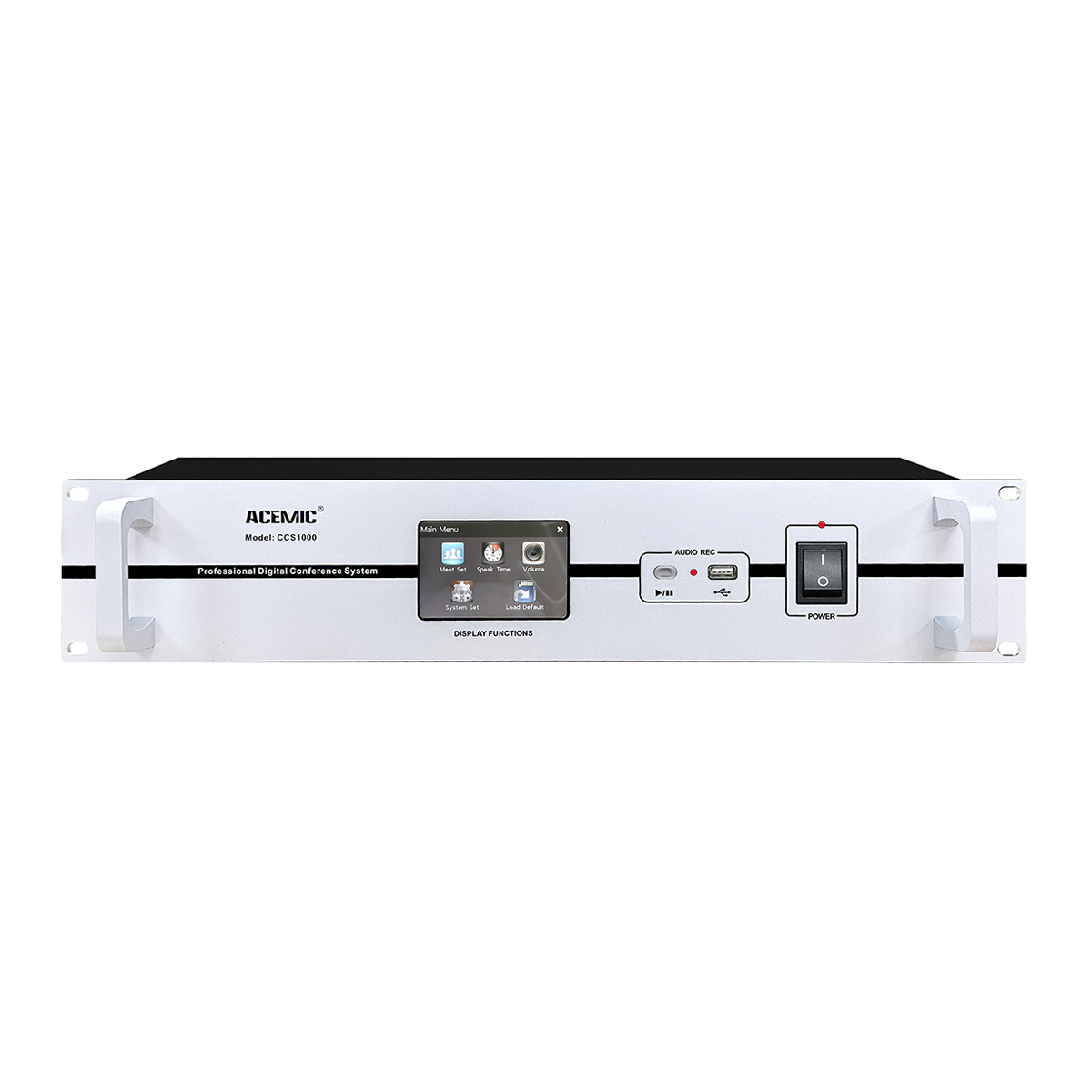

    Control Unit :
    Power Supply: AC110V-220V/50Hz
    Maximum Power Consumption: 150W
    Microphone Capacity: 120
    Frequency Response: 20Hz-20kHz
    Signal-to-Noise Ratio: >96dBA
    Total Waveform Distortion: <0.05%
    Recording Interface: USB
    Input Interface: DIN-8 x4
    Control Interface: RS-232
    Audio Output: RCAX2 6.3mm x 2 XLRX1

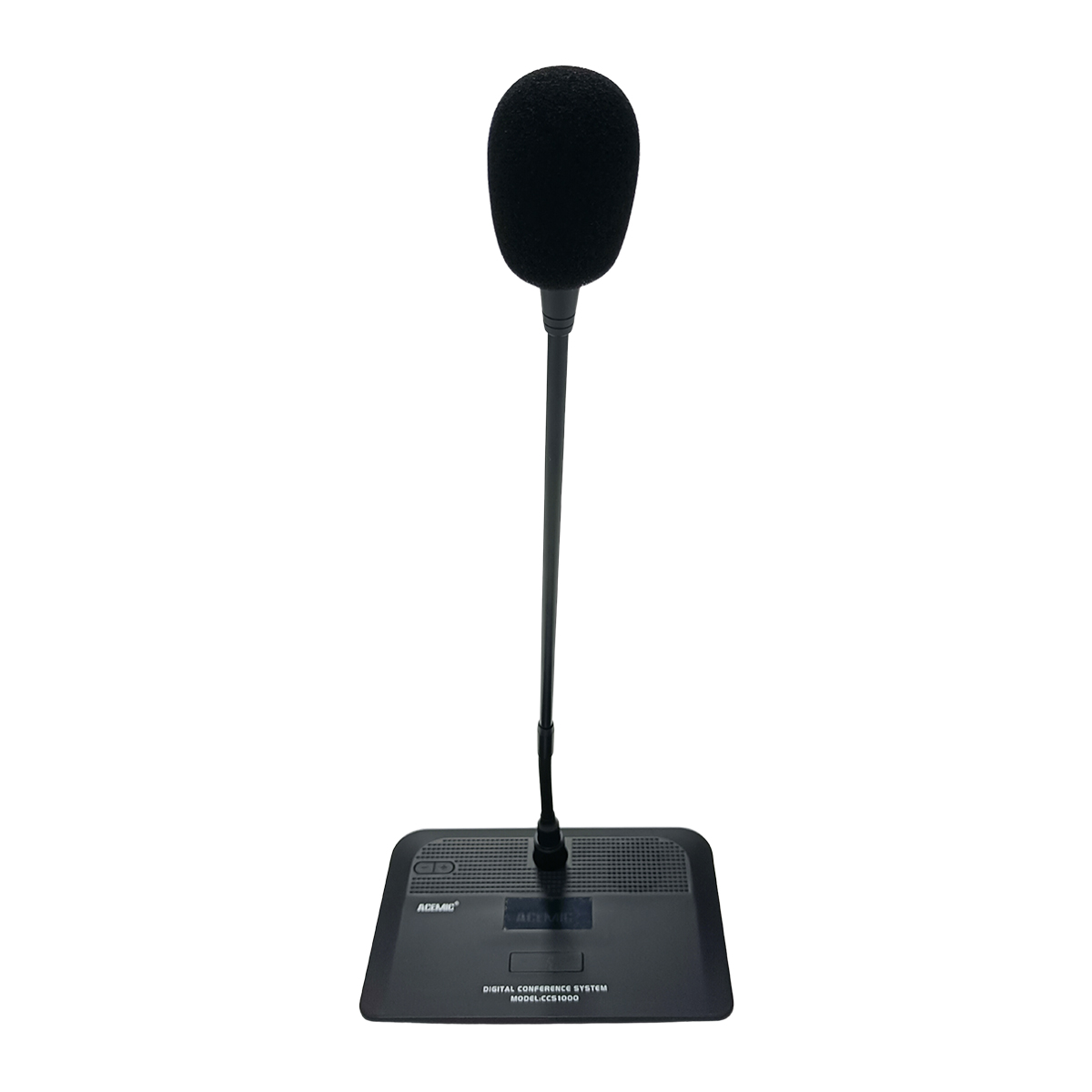

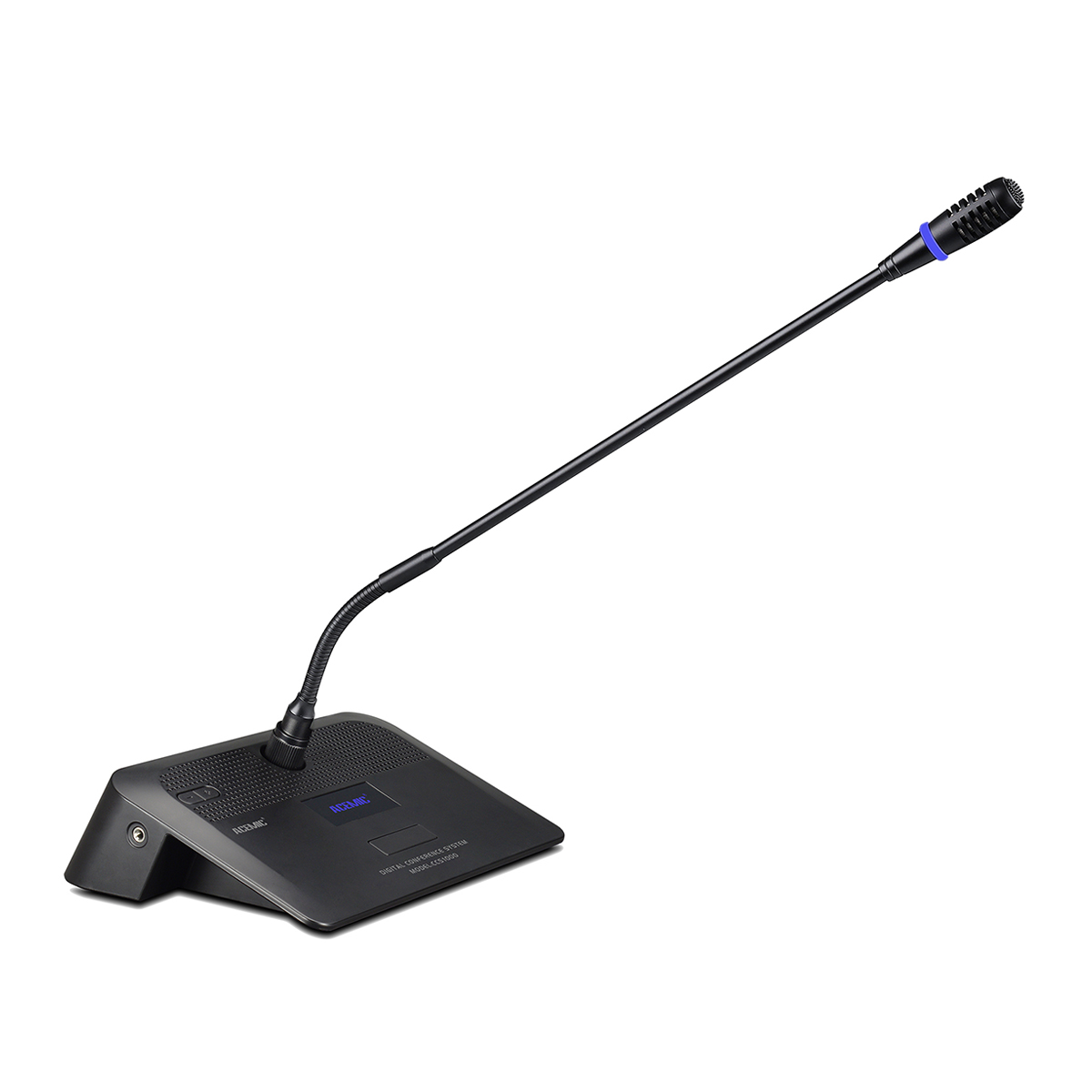

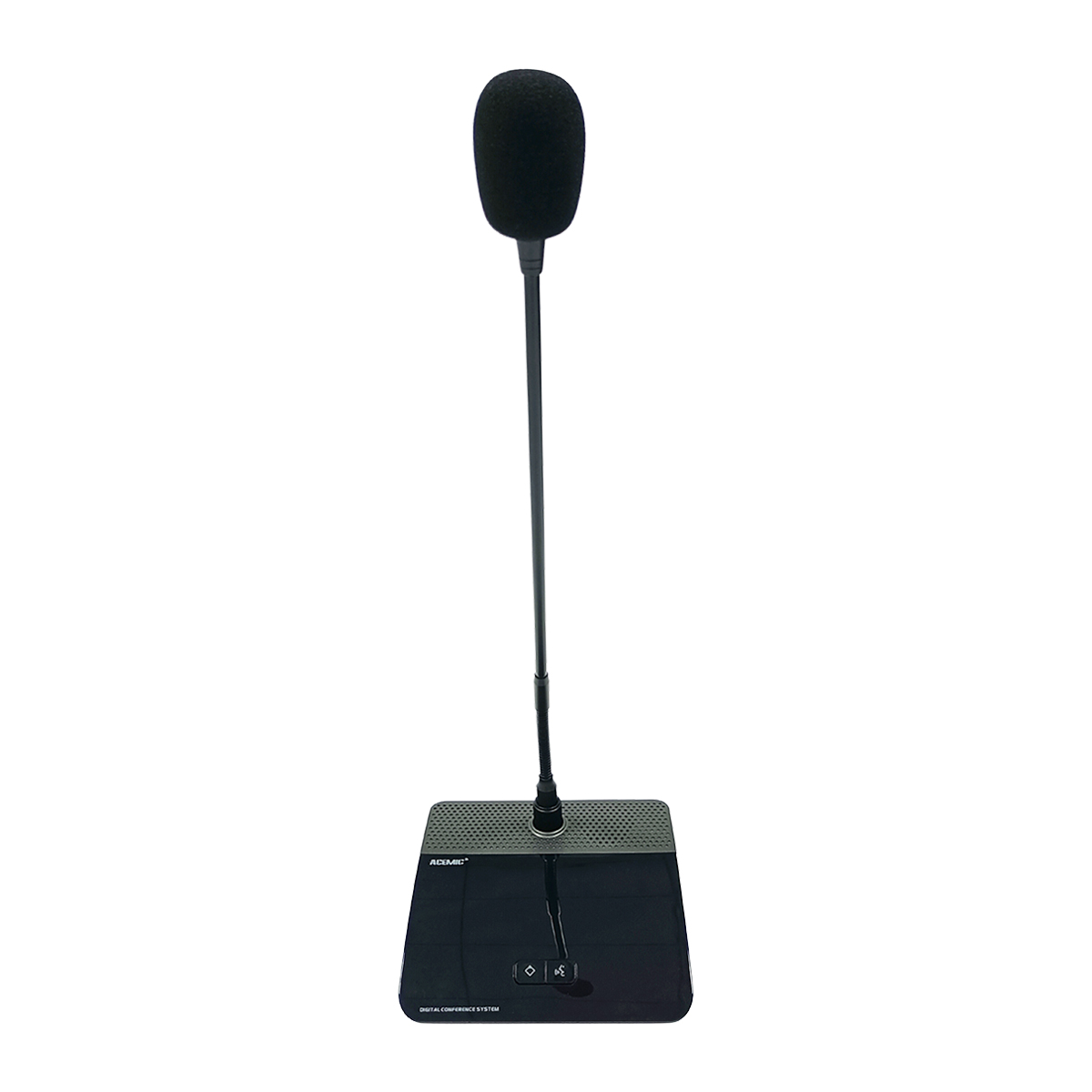

    Chairman Unit & Delegate Unit:
    Operating Voltage: DC24V
    Current Consumption: 50mA
    Directional Pattern: Cardioid
    Sensitivity: -46 dBV/Pa
    Frequency Response: 30Hz-16kHz
    Input Impedance: 2kΩ
    Equivalent Noise Rating: 20 dBA (SPL)
    Maximum Sound Pressure: 125dB (THD <3%)
    Built-in Speaker: 4Ω 2W
    Headphone Jack: 3.5mm

    Product Description

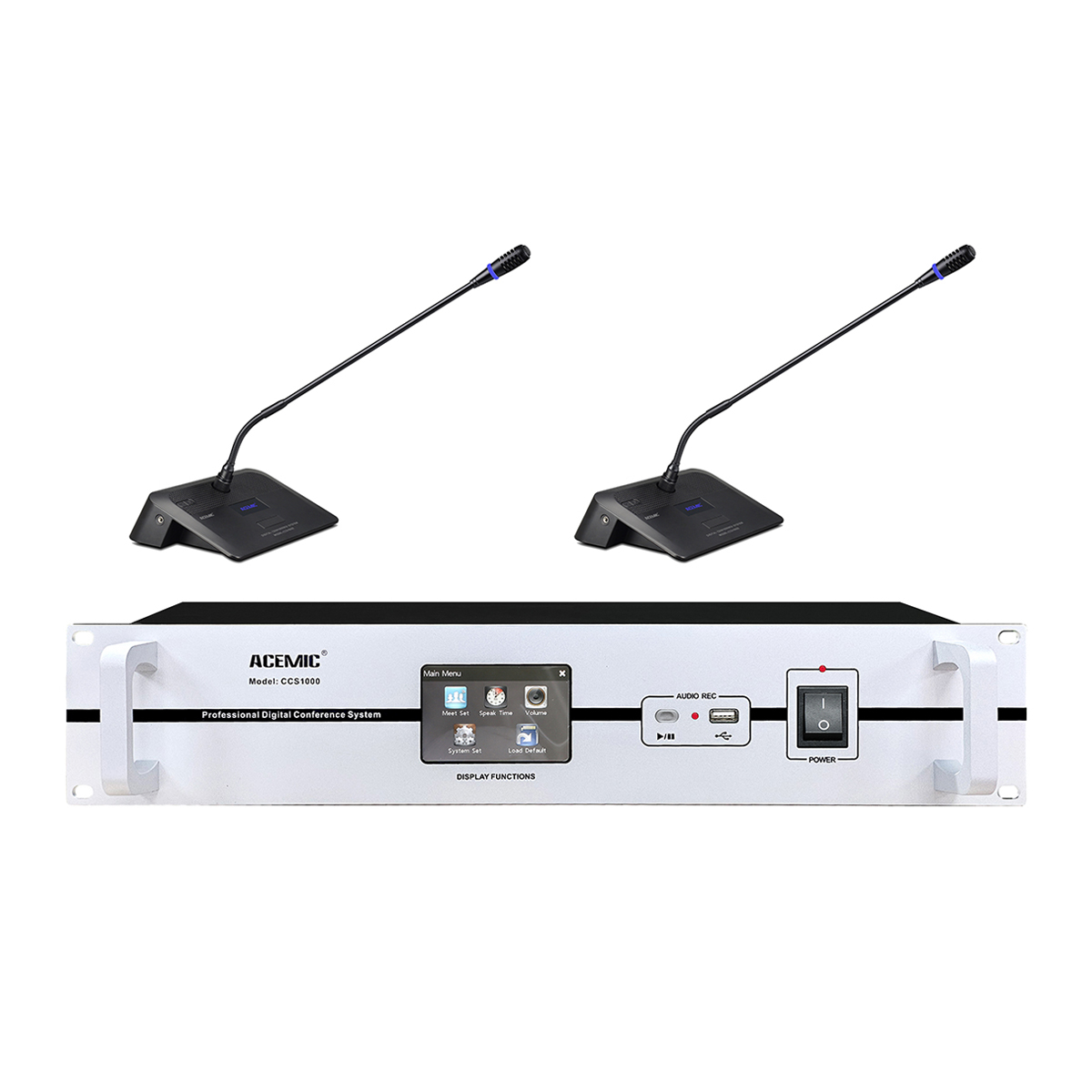

    The Acemic CCS1000 Digital Wired Conference Microphone System is a professional-grade solution designed for boardrooms, lecture halls, government meetings, and corporate conferences. Built on advanced digital technology and a high-performance CPU, the CCS1000 ensures reliable performance, crystal-clear sound, and flexible meeting control for small to large-scale discussions.

    Advanced Digital Performance
    The system features a 3.5-inch IPS touchscreen with an intuitive interface, making setup and management easy for administrators. Powered by a high-performance switching power supply, the CCS1000 guarantees stable long-distance audio transmission without compromising sound quality. Its **anti-interference circuit** design eliminates disruptions from mobile phone signals and nearby electronic devices, ensuring uninterrupted communication.

    Flexible Conference Management
    Designed for versatility, the system supports four microphone connections, each accommodating up to 30 units, for a total of 120 delegate and chairman units. With unlimited chairman units and up to 12 simultaneous speakers, it adapts seamlessly to conferences of varying sizes. The chairman priority function allows the chairperson to mute or disable delegate microphones, ensuring structured and efficient discussions.

    Scalable & Expandable System
    The CCS1000 supports cascading expansion, enabling multiple systems to be connected and managed together for larger venues. It also integrates with a central control system via a host computer, allowing advanced adjustment of conference parameters and streamlined system management.

    Convenient Recording & Playback
    Built-in USB recording with high-fidelity WAV data output provides easy storage and archiving of meeting content. This feature is ideal for organizations that require accurate documentation and playback of conferences, lectures, or training sessions.

    Multiple Conference Modes
    To suit different meeting scenarios, the system offers several configurable modes:
    • FIFO (First In, First Out)
    • LIFO (Last In, First Out)
    • FREE (Fully Open)
    • ONLY-C (Chairman Priority)
    • LIMITED (Speaker Restriction)
    Additional functions such as automatic shutdown and time-limited shutdown further enhance efficiency and system management.

    Key Specifications:
    • Core Technology: Digital with high-performance CPU
    • Display: 3.5-inch IPS touchscreen
    • Connections: 4 mic connections, up to 30 units each (120 total units)
    • Chairman Units: Unlimited
    • Speakers: 1–12 simultaneous speakers
    • Power Supply: High-performance switching power supply
    • Recording:USB with high-fidelity WAV output
    • Interference Protection: Anti-interference circuit for mobile signals
    • System Expansion: Supports cascading for large-scale use
    • Control Integration:Host computer with central control compatibility
    • Conference Modes: FIFO, LIFO, FREE, ONLY-C, LIMITED
    The Acemic CCS1000 Digital Wired Conference Microphone System combines advanced digital technology, scalable system architecture, and user-friendly operation to deliver professional audio performance for any conference environment. Whether in corporate boardrooms, government assemblies, or academic institutions, it ensures clarity, control, and efficiency in every discussion.
