EM-D02 Mono Wireless In-Ear Monitor System for Church

WISHLIST
Dual Channel Mono Wireless In-Ear Monitor System for Church
Features
UHF 600-937MHz frequency range
Mono Audio Output
Pre-set 16 selectable frequencies
IR sync downloading the frequency from receiver
LCD display and LED digital tube shows the working channel
EIA standard 1U rack-mountable metal chassis
Up to 263 feet (80m) line-of-sight operating range
Designed for churches, stage performance, singers, guitarists, drummers, studios etc.
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    Model: EM-D02
    Mono Audio Output
    Operating Range: 80m, 263ft

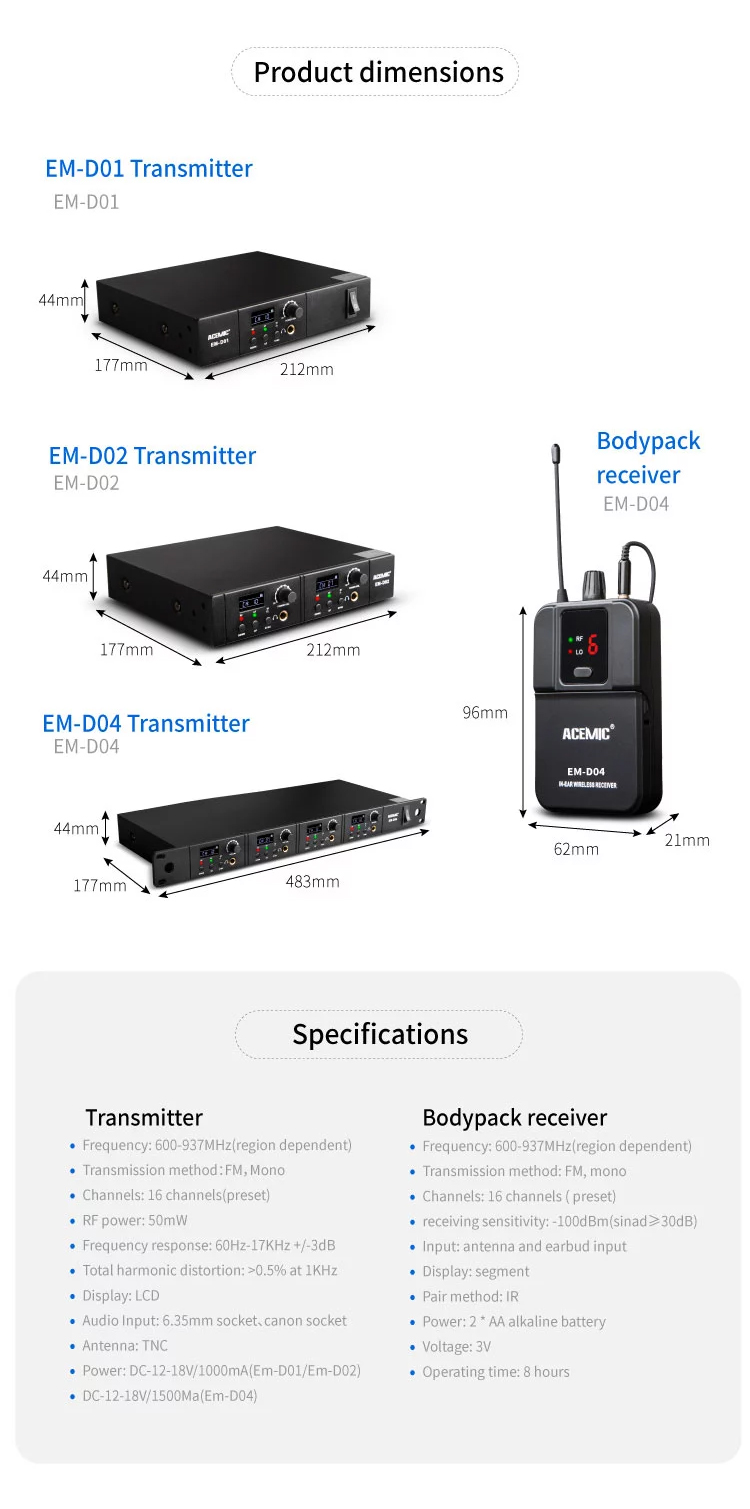

    Specifications

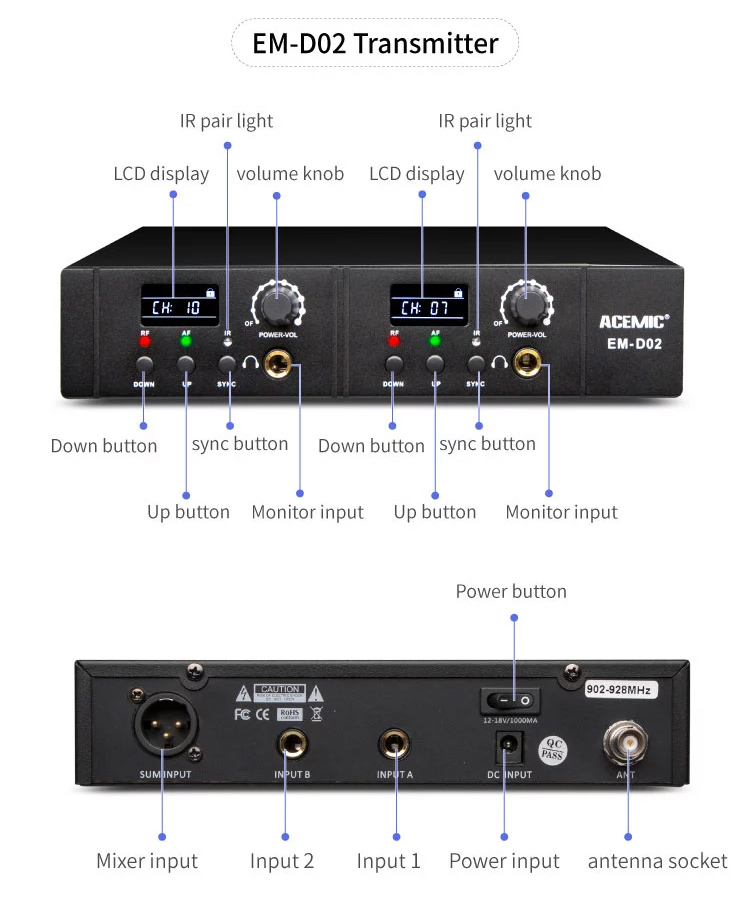

    Transmitter (Main Unit):
    Frequency Range: UHF 660-690MHz (USA: 902-928MHz)
    Transmission Method: FM,Mono
    Channels: 2×16
    RF Output Power: 10mW/50mW
    Frequency Response: 60Hz-17KHz+/-3dB
    T.H.D: <0.5%at 1KHz
    Display: Back lit LCD
    Audio Input: 6.35mm/XLR
    Antenna: TNC
    Power Supply: DC12V-18V/1500mA
    Dimensions(LWH): 212×177×44mm

    Receiver (Bodypack):
    Frequency Range: UHF 660-690MHz (USA: 902-928MHz)
    Transmission Method: FM,Mono
    Channels: 16
    Receive Sensitivity: -100dBm(sinad>30dB)
    Output: Line out and earphone out
    Display: LED digital tube
    Frequency pairing: IR Sync
    Power Supply: 2*AA batteries
    Operating Voltage: 3V
    Operating time: 8 hours
    Dimensions(LWH): 96×62×210mm

    About this item:
    【UHF Wireless Transmission】The wireless in-ear monitor system utilizes UHF band circuitry. Delay-free operation compared to the 2.4GHz design. Advanced circuit design, clear the receiving blind angle to make the system's receiving signal steady, avoid interference.
    【2x16 Tunable Frequencies】 Among the band of 30 MHz, the preset 16 frequencies can be arbitrary switching. Enable interference-free multiset operation with two sets of wireless in-ear monitor system.
    【Reliable Monitoring】 Built-in Limiter circuitry eliminating distortion at excessive input levels. Also improve the signal-to-noise ratio of the dynamic range so that the wireless in-ear monitor system has the best anti-interference to show the perfect original sound again. Mono in ear monitor produces crystal-clear sound monitoring and enables you to monitor overall sound from various instruments and singers effectively, a beginner-friendly in-ear monitor system for church and band.
    【Long Wireless Range】The wireless in-ear monitor system offers tabletop stage monitoring with a wireless range of up to 263 feet (80m), with frequency range UHF 600-937MHz. Cable-free set you free.
    【Design Features】 Clear LCD display panel to provide the system details. With Channel indicator & RF receiving indicator lamp on receivers. It uses two AA batteries and an efficient power circuit, long service time. The metal housing makes it sturdy and durable.
    【Rugged and Durable】The sturdy whole metal-built transmitter and light-weight ABS bodypack receivers are long-lasting and elegant. The wireless in-ear monitor system is suitable for churches, stage performances, studio recordings, lectures, etc. The rackmount kit facilitates more professional use and better signal transmission.
