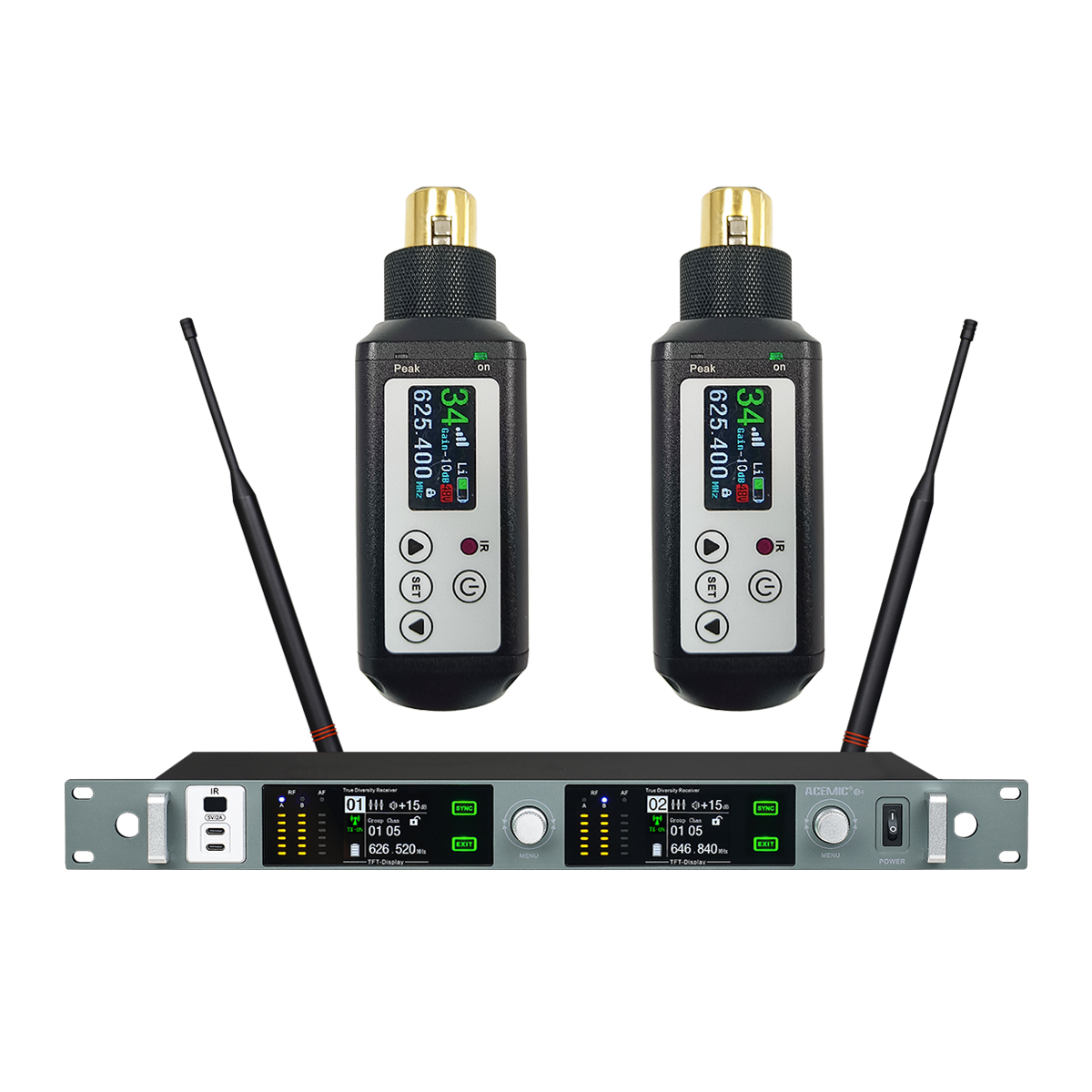

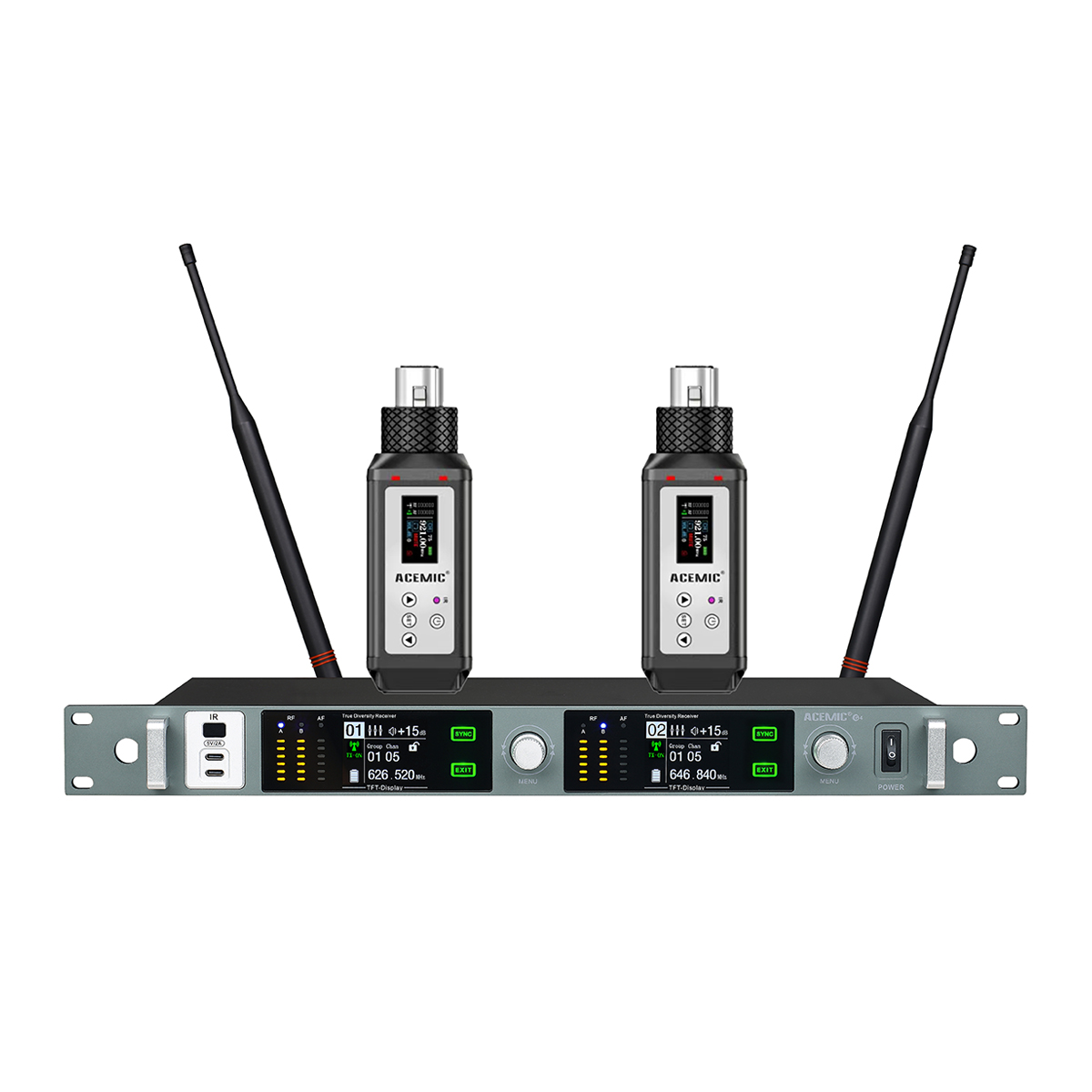

XLR Wireless Transmitter and Receiver for Microphone with 48V Phamton Power True Diversity 300 Meters
Features
The Acemic G4/TR-1 XLR wireless transmitter and receiver adopts the latest UHF high-fidelity audio wireless transmission technology, ensuring excellent clarity and accurate reproduction of microphone audio.
With true diversity reception, the system guarantees maximum stability in long-distance transmission without dead zones, achieving a reception range of up to 300 meters (984 feet) with reliable performance.

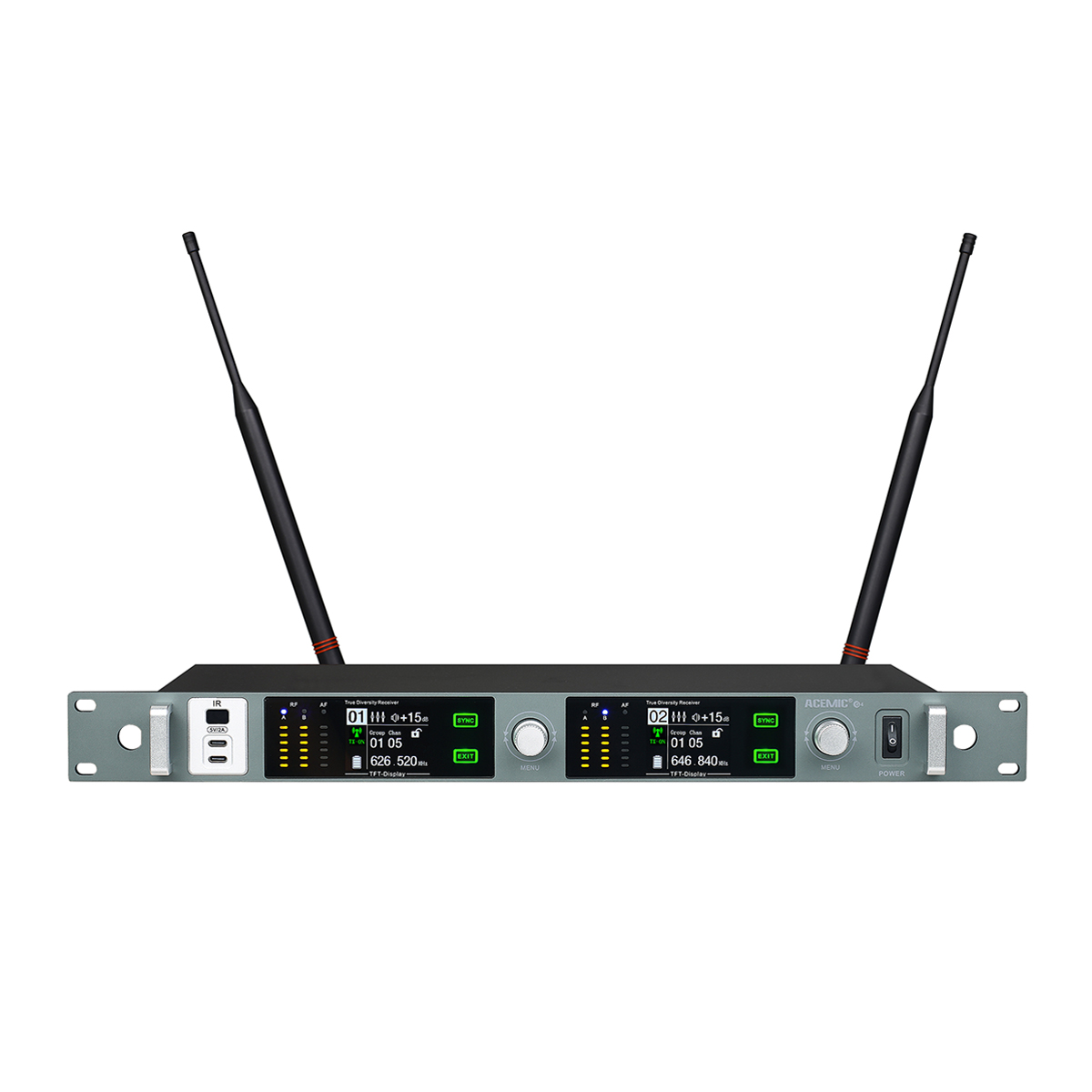

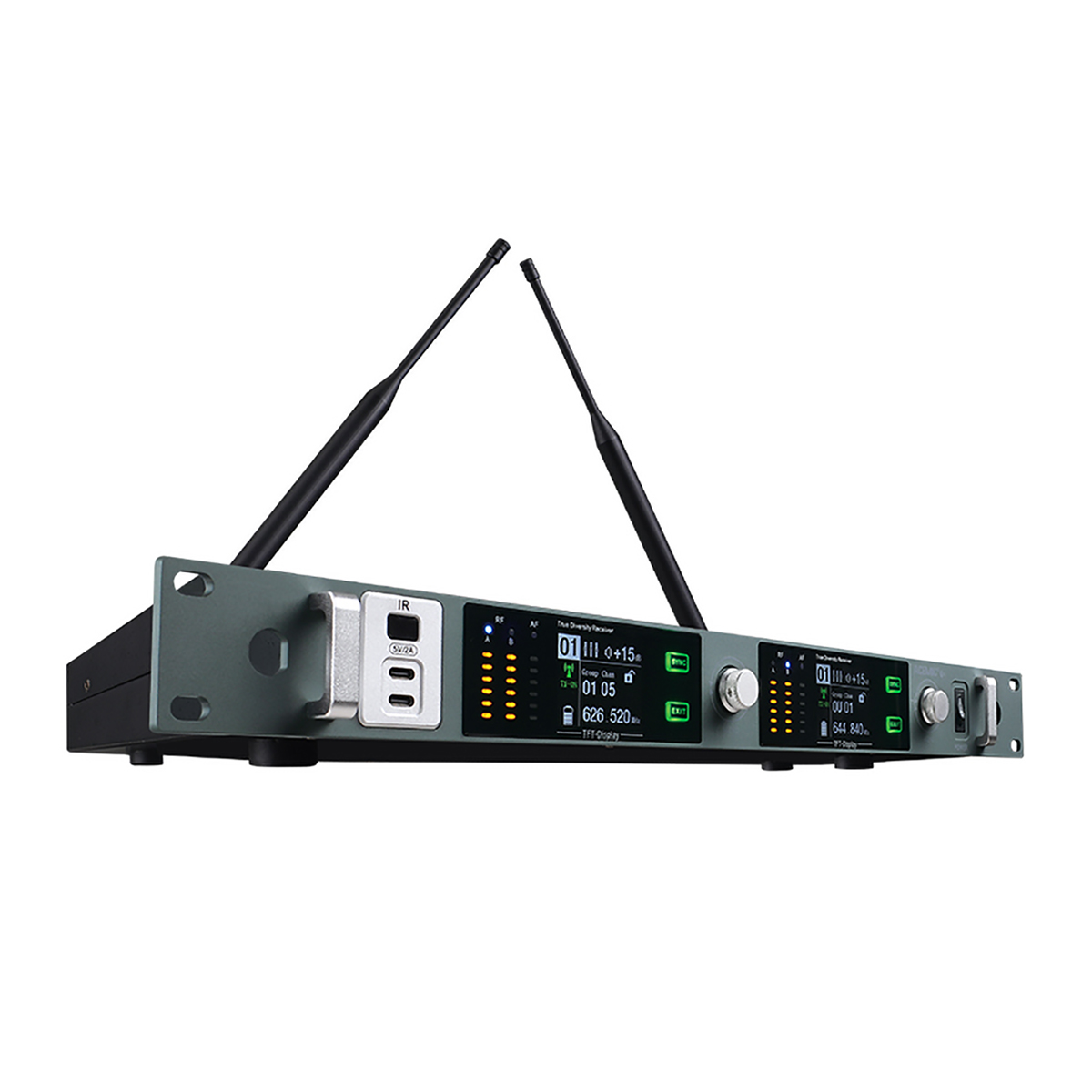

The receiver is equipped with a TFT display and offers multiple EQ modes, allowing users to adjust settings according to different application needs for superior sound quality.
It comes with 32 preset frequency groups and 6,000 selectable frequencies, giving users flexible configuration options.
Operation is simple and efficient, featuring fast spectrum scanning and frequency selection to prevent interference from other wireless devices operating in the same environment.

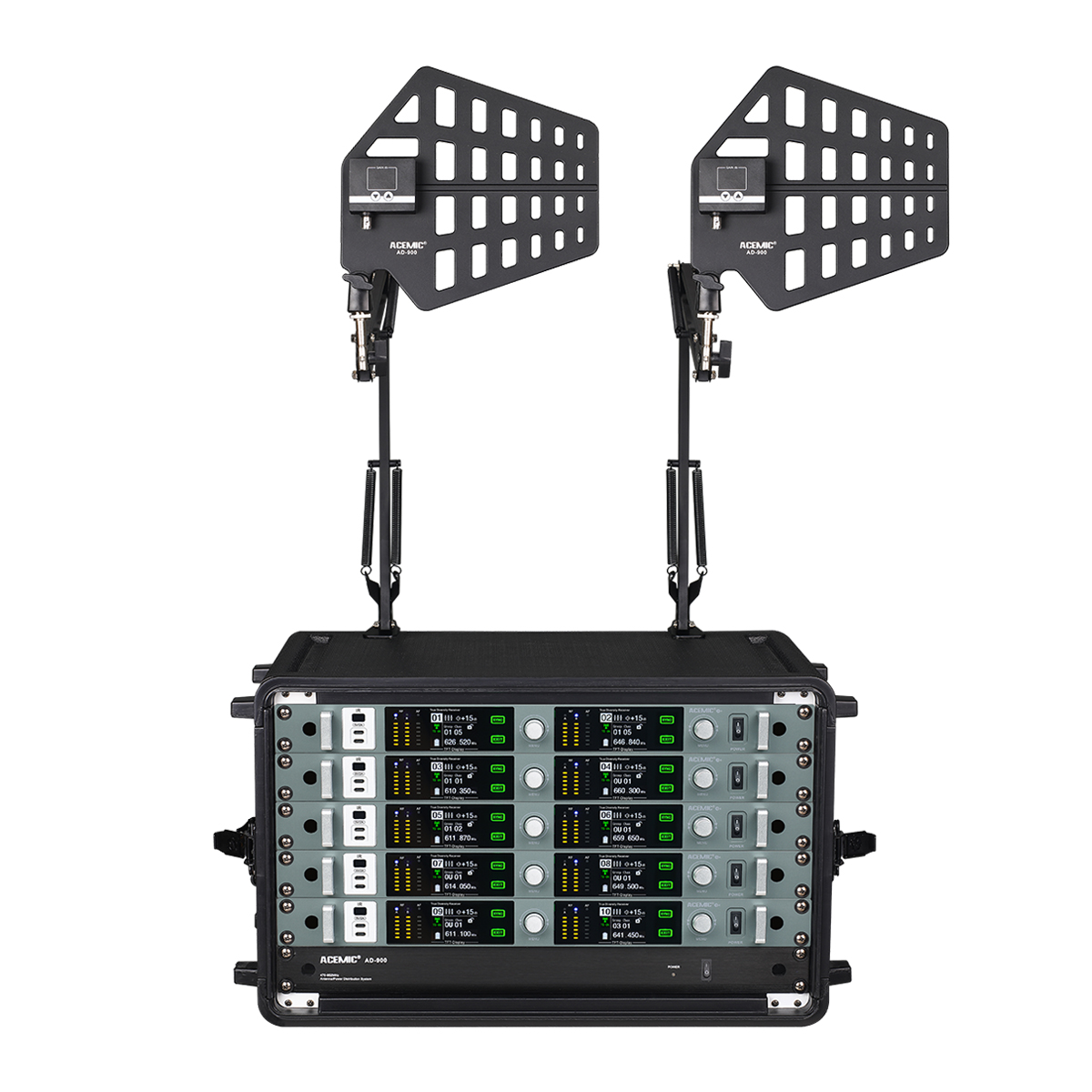

The system supports up to 20 sets used simultaneously, with antenna cascading capability for multiple receivers. The transmitter also includes an ID recognition function, enabling quick pairing with the corresponding receiver.
Additional features include Chinese/English menu switching and a key-lock function to prevent accidental changes to system settings.

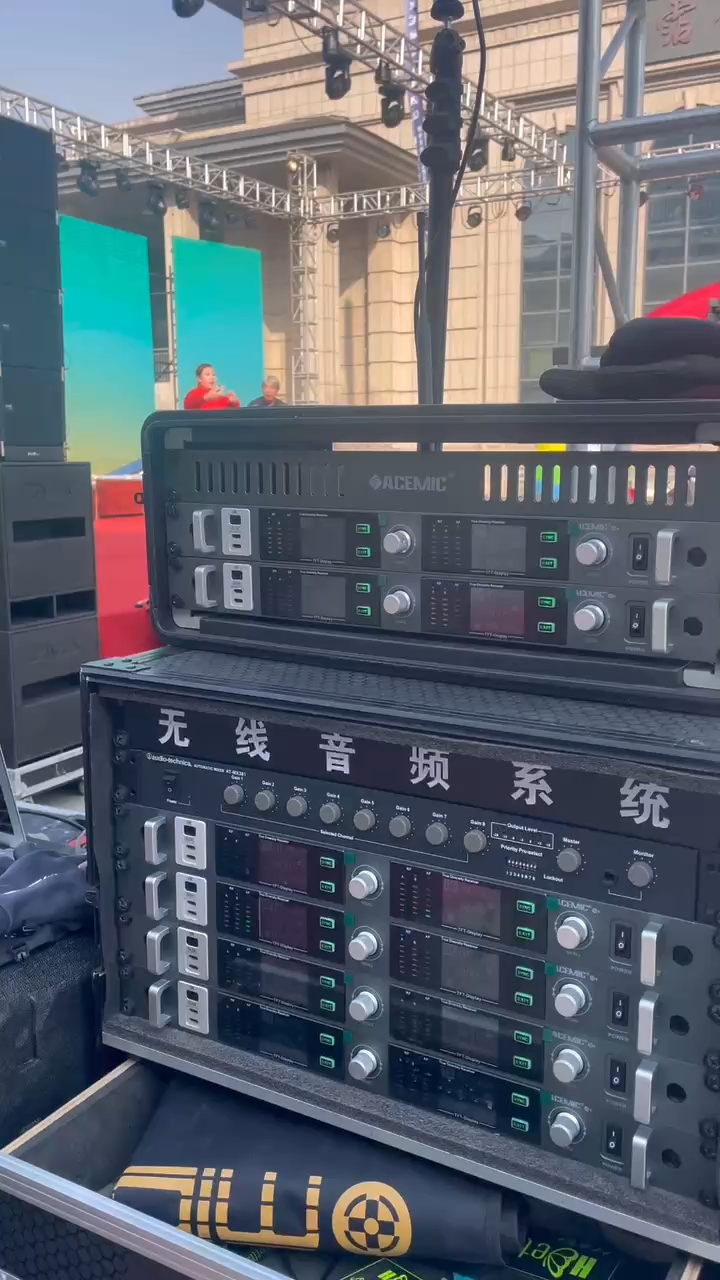

The G4/TR-1 is a high-quality, stable, reliable, and feature-rich solution that is also easy to operate. It is ideal for complex stage performances and ultra-long-distance applications, fully meeting the most demanding requirements for sound quality.
The Acemic G4/TR-1 XLR wireless transmitter and receiver adopts the latest UHF high-fidelity audio wireless transmission technology, ensuring excellent clarity and accurate reproduction of microphone audio.
With true diversity reception, the system guarantees maximum stability in long-distance transmission without dead zones, achieving a reception range of up to 300 meters (984 feet) with reliable performance.
The receiver is equipped with a TFT display and offers multiple EQ modes, allowing users to adjust settings according to different application needs for superior sound quality.
It comes with 32 preset frequency groups and 6,000 selectable frequencies, giving users flexible configuration options.
Operation is simple and efficient, featuring fast spectrum scanning and frequency selection to prevent interference from other wireless devices operating in the same environment.
The system supports up to 20 sets used simultaneously, with antenna cascading capability for multiple receivers. The transmitter also includes an ID recognition function, enabling quick pairing with the corresponding receiver.
Additional features include Chinese/English menu switching and a key-lock function to prevent accidental changes to system settings.
The G4/TR-1 is a high-quality, stable, reliable, and feature-rich solution that is also easy to operate. It is ideal for complex stage performances and ultra-long-distance applications, fully meeting the most demanding requirements for sound quality.
Quantity
-
DetailModel: G4/TR-1
True Diversity
Operating Range: 300m, 984ftSpecifications
Frequency Range: UHF 600-937 MHz (region dependent)ReceiverFrequency Range:UHF 610-698 MHz

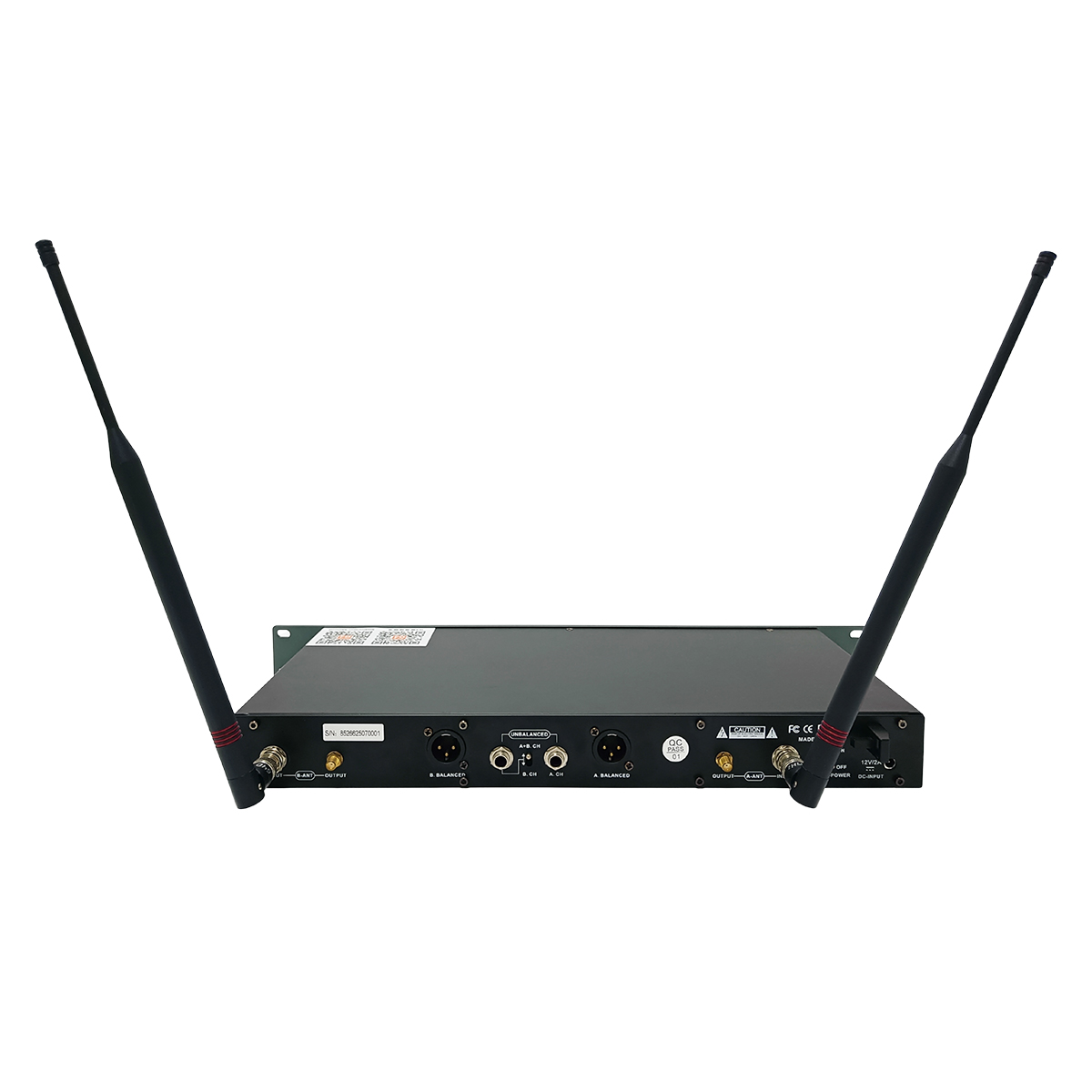

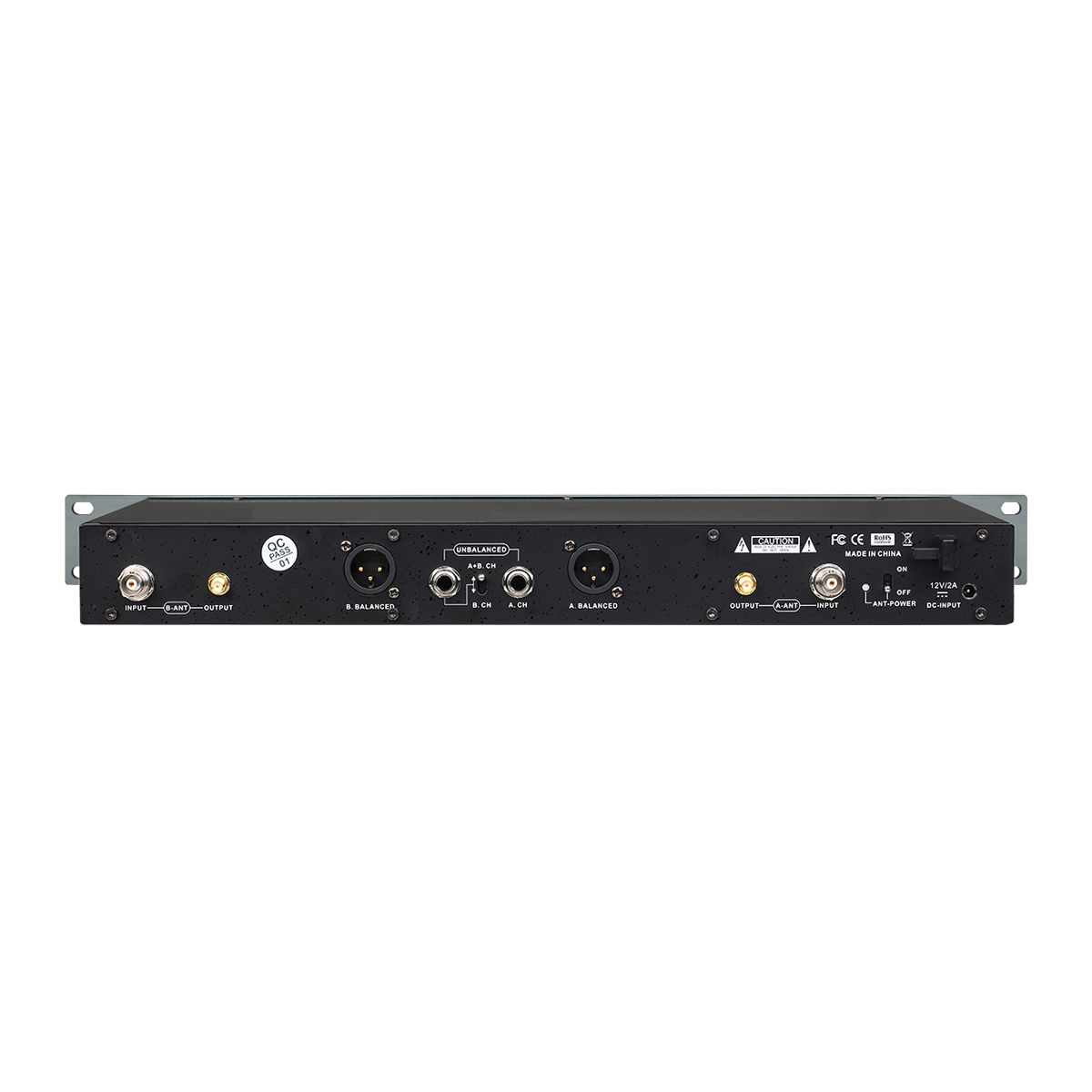

(610-640 MHz Optional), (USA: 902-928 MHz, ROK: 925-937 MHz)Frequency Bandwidth:42MHz/60MHzMaximum Number of Channels:6000Receiving Sensitivity:-105dBm/S/N=12dBFrequency Stability:+-10PPMAntenna Input :2*BNC/50ΩAntenna Output:2*SMA/50ΩImage Rejection:>100dB3rd Order IMD Suppression:>75dBBlock Suppression:>75dBAdjacent Channel Rejection:>110dB (+-200KHz)Signal-To-Noise Ratio:≥110dBPower Supply:1500mA

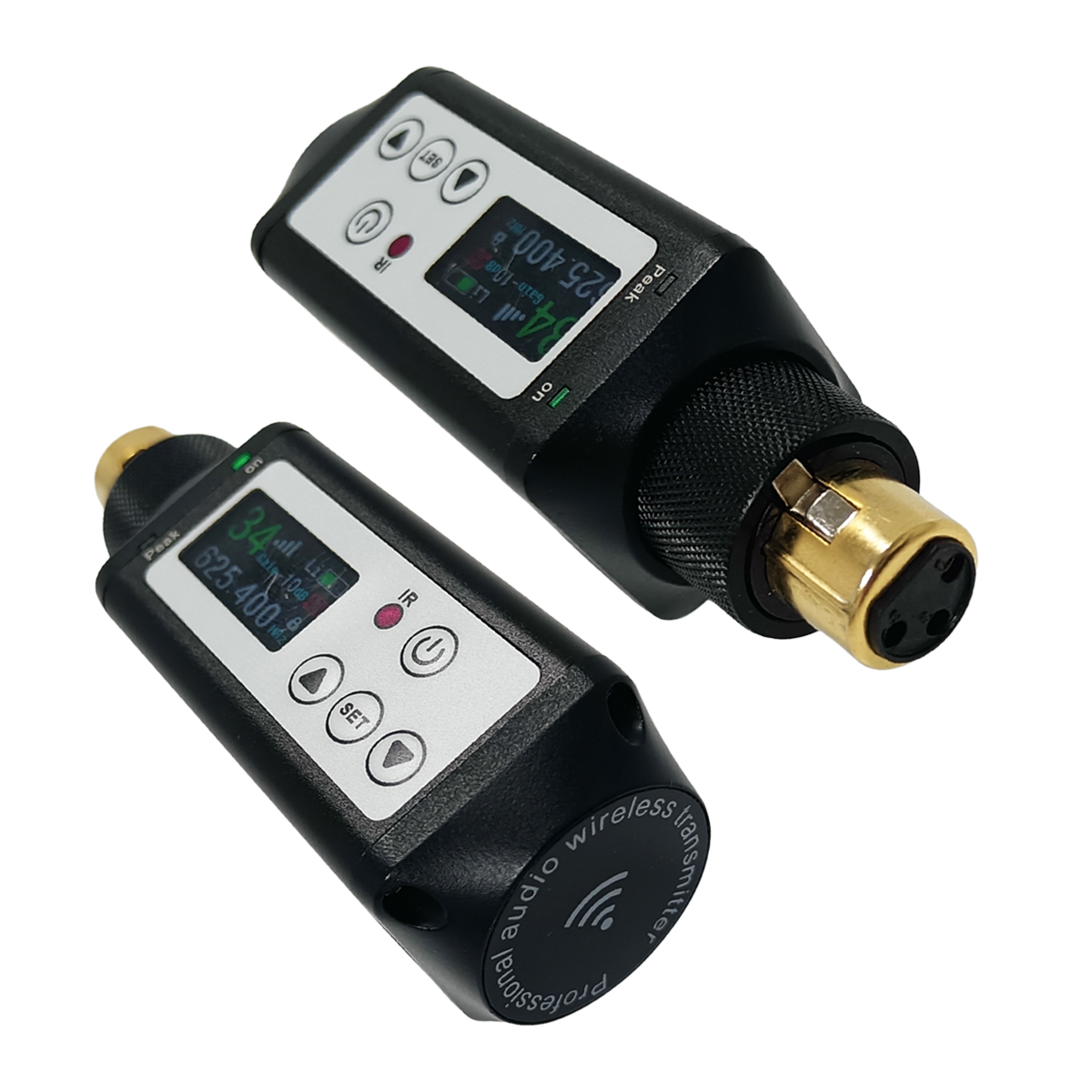

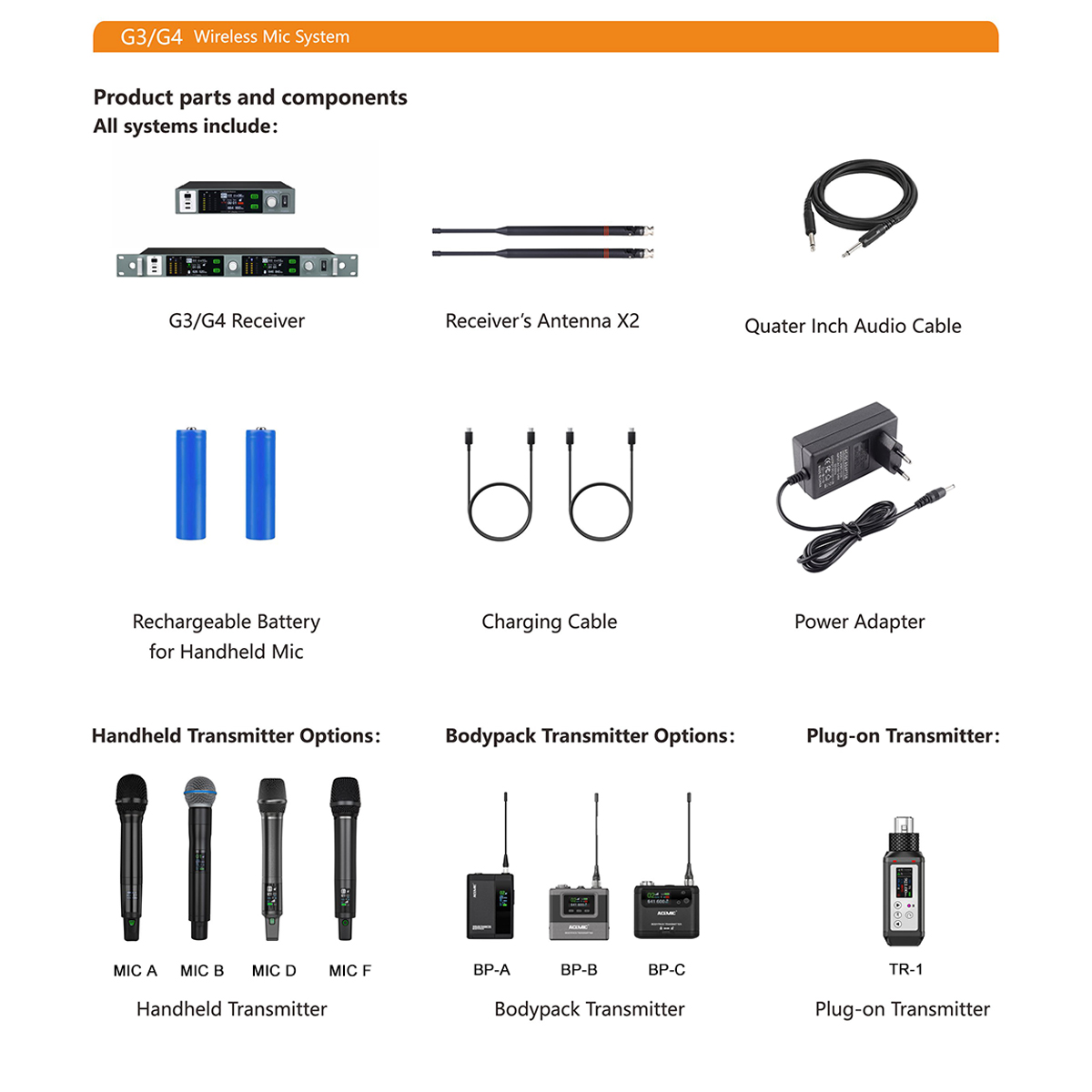

Plug-On TransmitterFrequency Range: 610-698 MHz

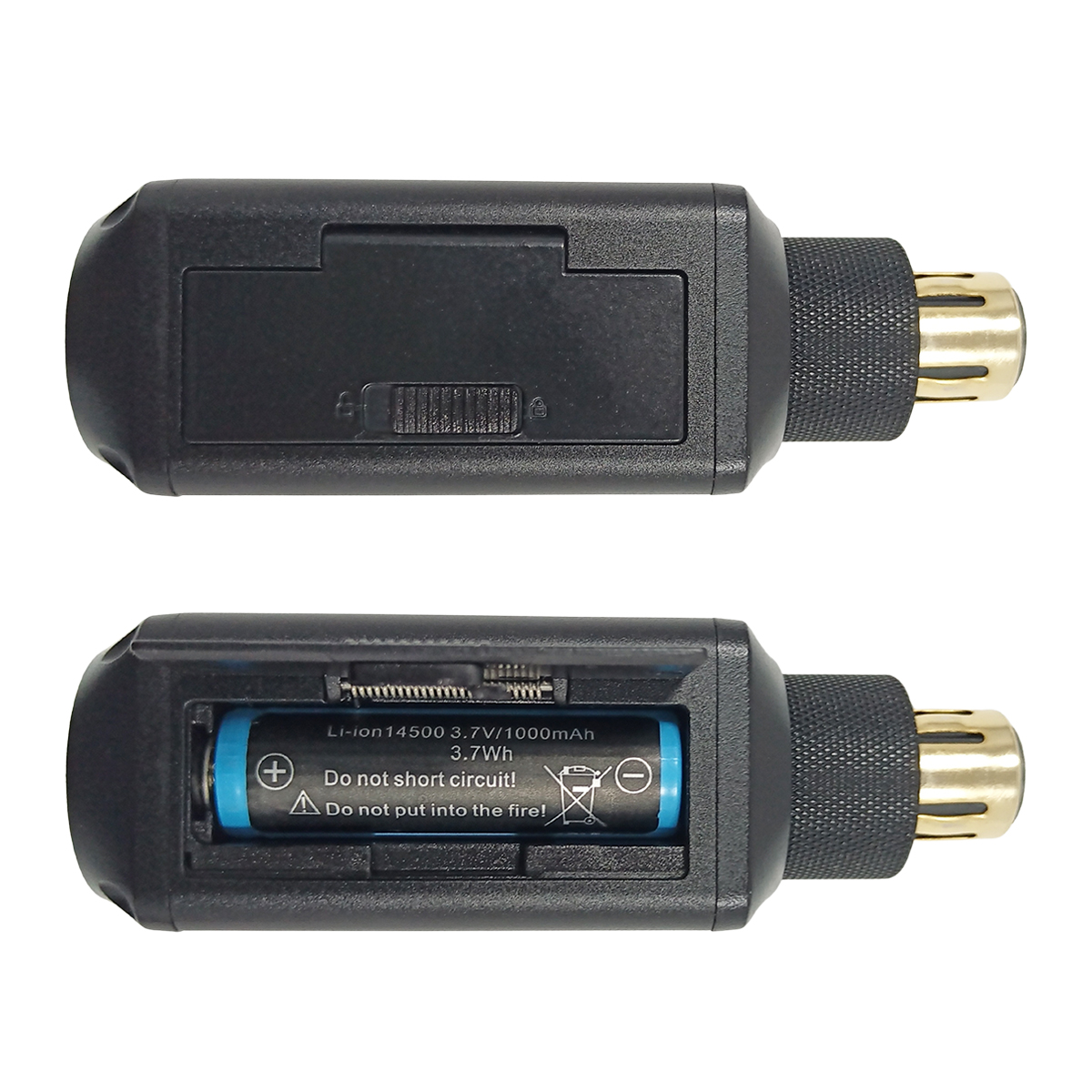

(610-640 MHz Optional), (USA: 902-928 MHz, ROK: 925-937 MHz)Bandwidth: 88 MHzMaximum Number of Channels: 8800 CHRF Power: 10/20 mWMaximum Frequency Deviation: 65 KHzPhantom Power Supply for Pins 2 and 3: 15V/48VPower Requirements: 1* Li-ion 14500 3.7V/1000mAh battery or 1*1.5V AA batteryBattery Life: Standard 14500 Li-ion battery, 8-9 hrs (high power mode), 10-11 hrs (low power mode)Handheld TransmitterFrequency Range:UHF 610-698 MHz(610-640 MHz Optional), (USA: 902-928 MHz, ROK: 925-937 MHz)Frequency Bandwidth:88MHzRF Power:10/30mWMax Frequency Deviation:65KHzPower Requirements:1*3.7V/14500 Li-ion Battery or 1*1.5V AA BatteryBattery Life: 14500 Li-ion Battery, 9-10 hrs (high power level); 13-14 hrs ( low power level)Bodypack TransmitterFrequency Range:UHF 610-698 MHz(610-640 MHz Optional), (USA: 902-928 MHz, ROK: 925-937 MHz)Frequency Bandwidth:88MHzRF Power:10/30mWMax Frequency Deviation:65KHzPower Requirements:2*1.5V AA batteryBattery Life:8-10 hours
Product Description

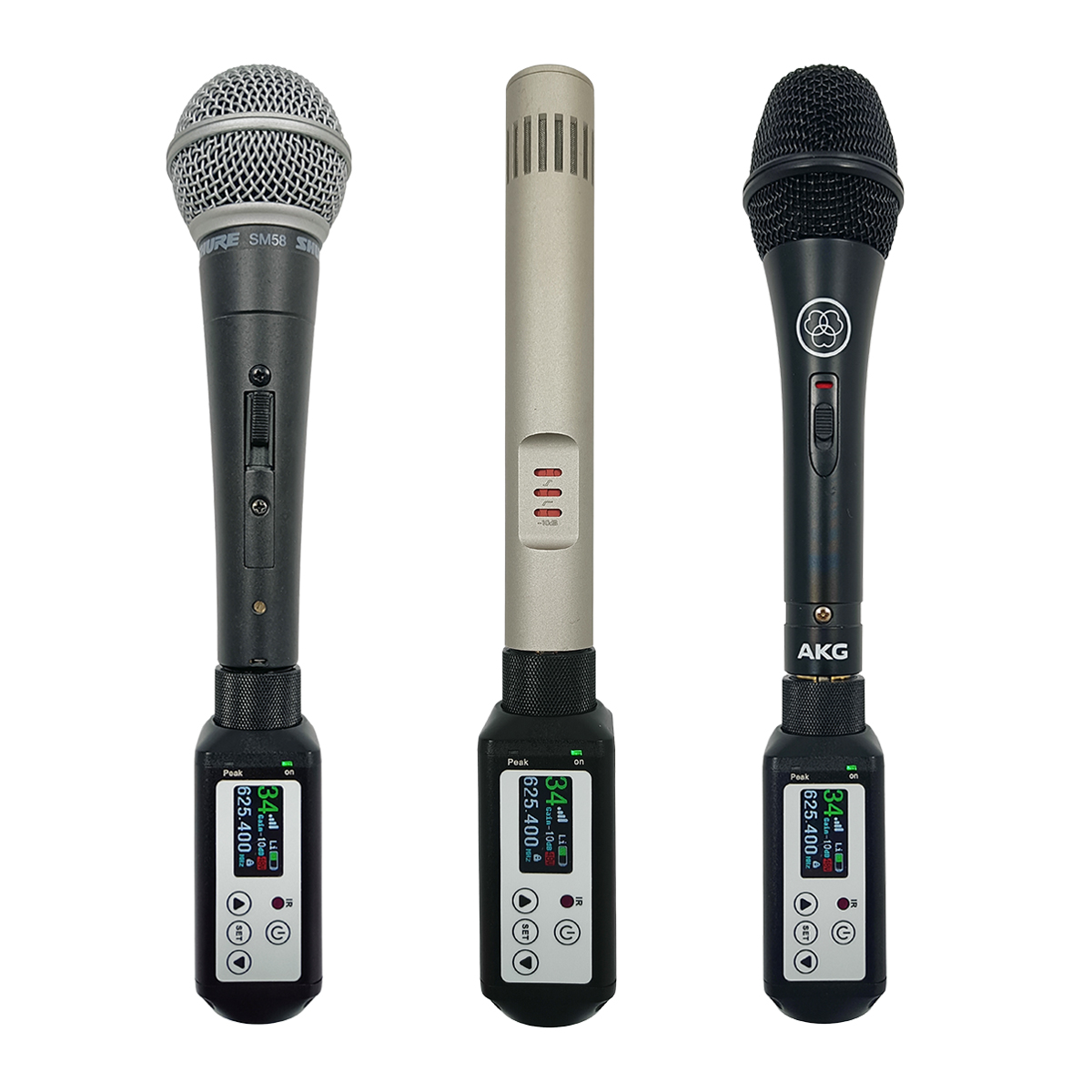

Acemic G4/TR-1 XLR Wireless Transmitter and Receiver With 48V Phantom Power – Professional Wireless Microphone AdapterThe Acemic G4/TR-1 XLR wireless transmitter and receiver is a premium solution for transforming your favorite wired microphones into high-performance wireless systems. Designed for both dynamic and condenser microphones, this professional wireless adapter ensures pristine sound quality and maximum reliability, making it the ideal choice for live performances, stage events, studio use, and worship applications.Powered by advanced UHF 610–698 MHz high-fidelity wireless transmission technology, the G4/TR-1 delivers crystal-clear audio reproduction with minimal latency and ultra-low distortion. With true diversity reception, it eliminates dropouts and ensures unmatched stability across distances of up to 300 meters (984 feet), even in complex and crowded RF environments.Equipped with a bright TFT display, the receiver provides real-time monitoring of system status, frequency selection, and EQ adjustments. Musicians and sound engineers can fine-tune audio with multiple EQ modes, tailoring sound to suit dynamic stage environments. The system offers 32 preset frequency groups and an impressive 6,000 selectable frequencies, enabling effortless setup and interference-free operation.For added convenience, the G4/TR-1 supports fast spectrum scanning and automatic frequency selection, ensuring a clean signal every time. Up to 20 systems can operate simultaneously, with antenna cascading for multi-receiver setups. The transmitter also includes an ID recognition function for quick syncing with the correct receiver, plus a 48V phantom power supply option for condenser microphones.Additional professional features include Chinese/English menu switching, a secure key-lock function to prevent accidental adjustments, and rugged construction for durability on stage or on the road.Whether you need a wireless microphone adapter for live vocals, speeches, or instrument miking, the Acemic G4/TR-1 delivers the range, clarity, and reliability required for professional performance. -
