Wireless Microphone System for Large Stage Performance True Diversity 300 Meters
Features

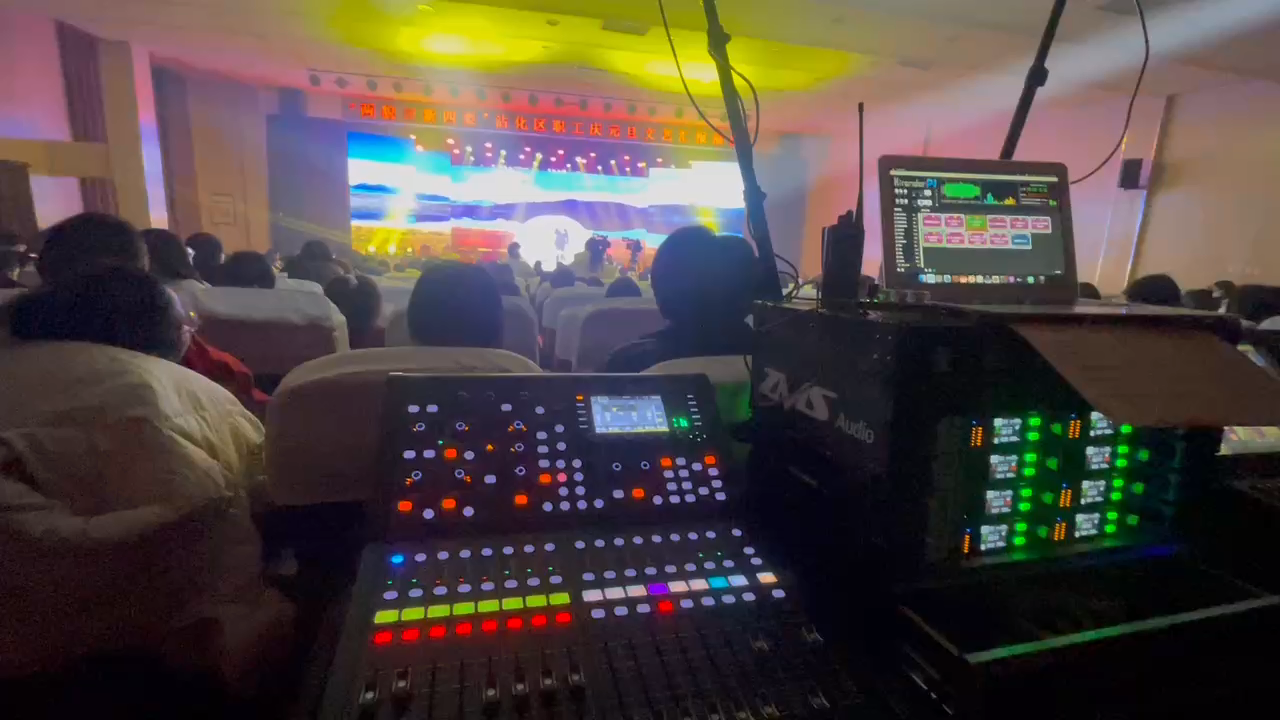

G4/MicF is a high-end wireless microphone system for large stage performance, events, church, singer singing, public speaking etc.
It uses a latest UHF transmisson technology to ensure high fidelity clear sound.
True diversity system is most likely possible to avoid drop-out in long distance transmission, range up to 984 feet (300m)
Strong an-ti interference ability, 20 sets can be used at once.
It has auto scan ,spectrum scan features to help you find cleanest surrounding frequency.

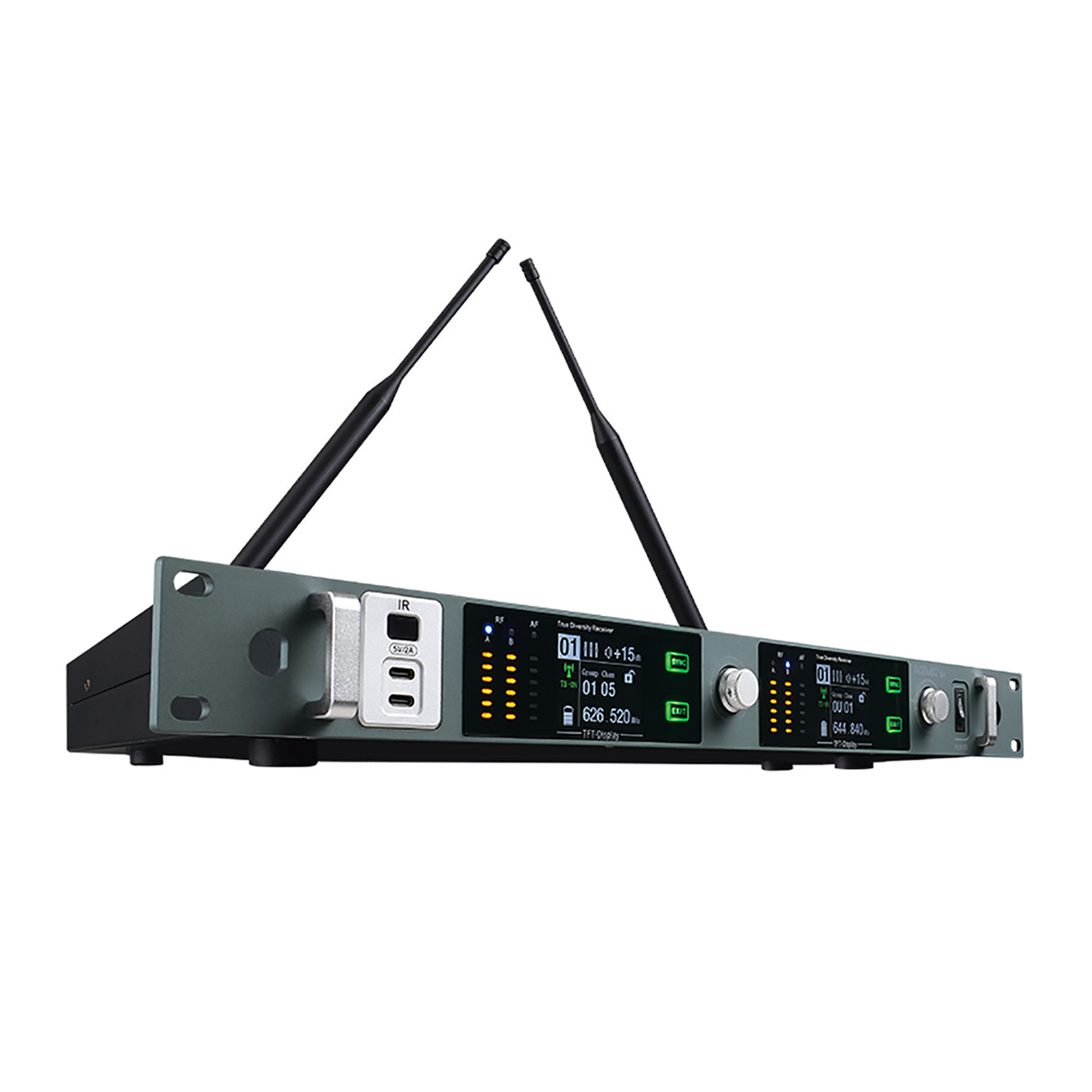

TFT high definition display, on/off logo can be customized for transmitter/receiver.
Receiver has equalizer feature , user can adjust treble, alto and bass accordingly.
UHF range, 60MHz bandwidth allows 32 pre-set channel groups and 6000 frequencies to be used.
Set ID code 01-99, then sync , transmitters can easily identify the corresponding receivers, useful when you use multiple devices together.

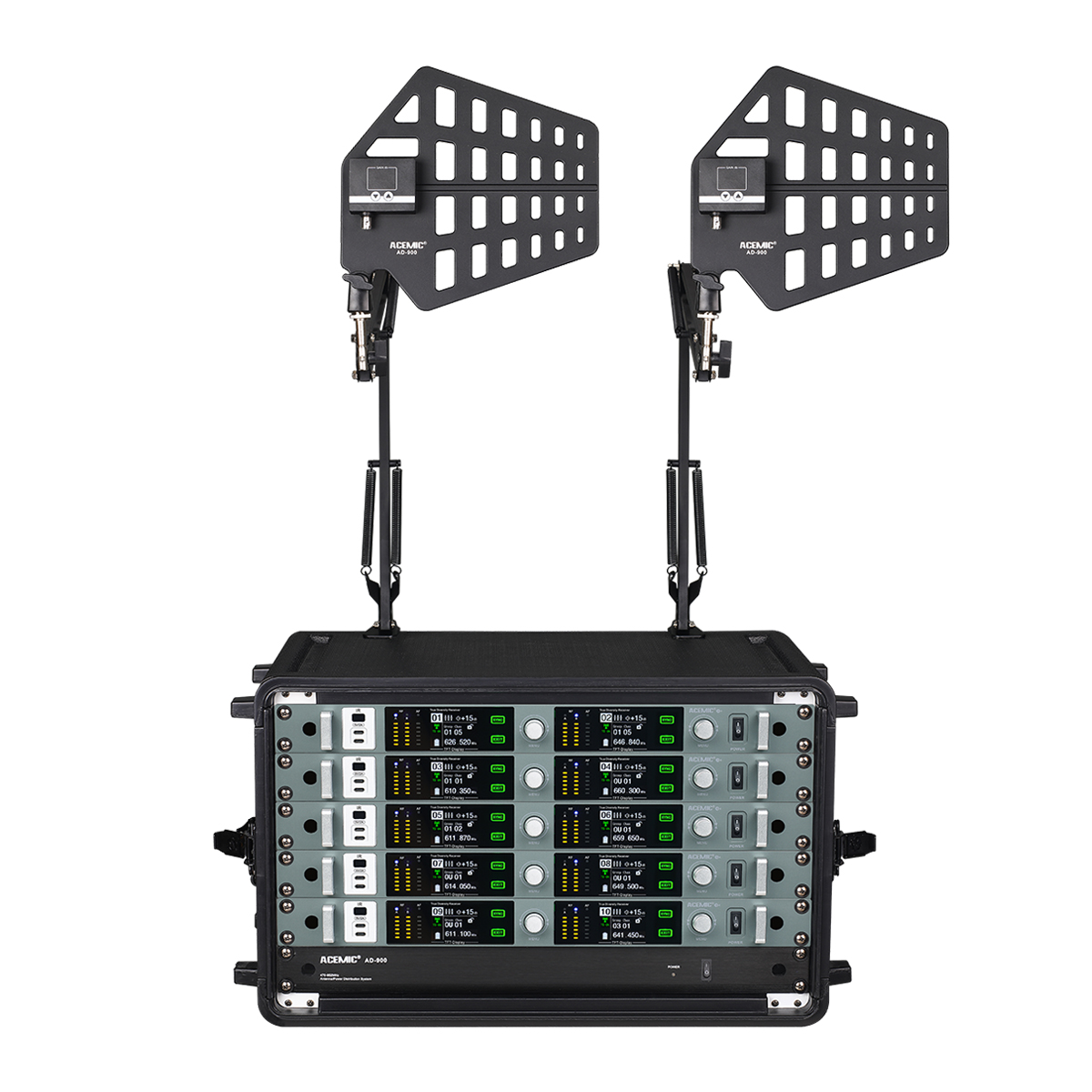

May use bridge cable as replacement of antenna, antennas may supply power, can connect directly to antenna combiner’s wings.

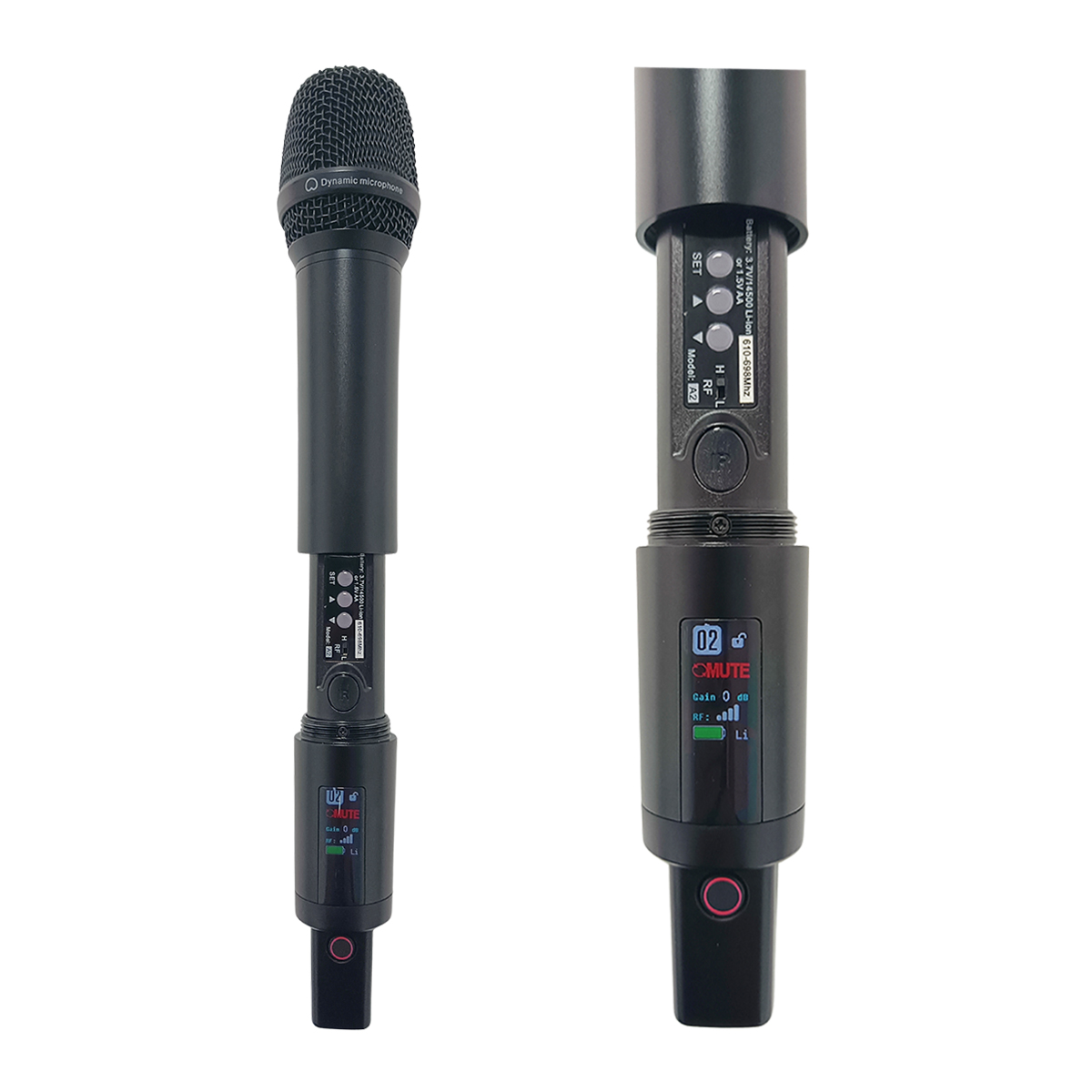

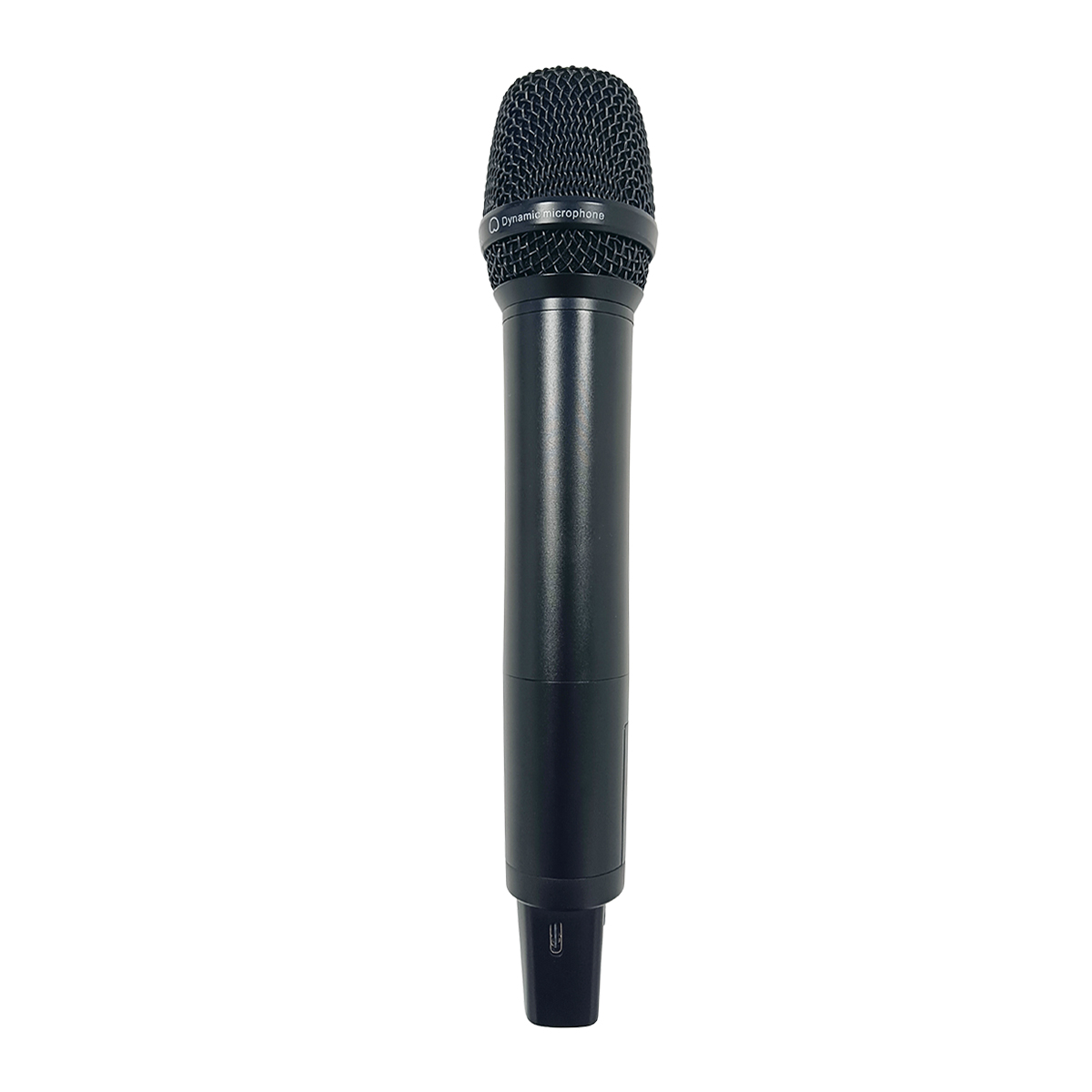

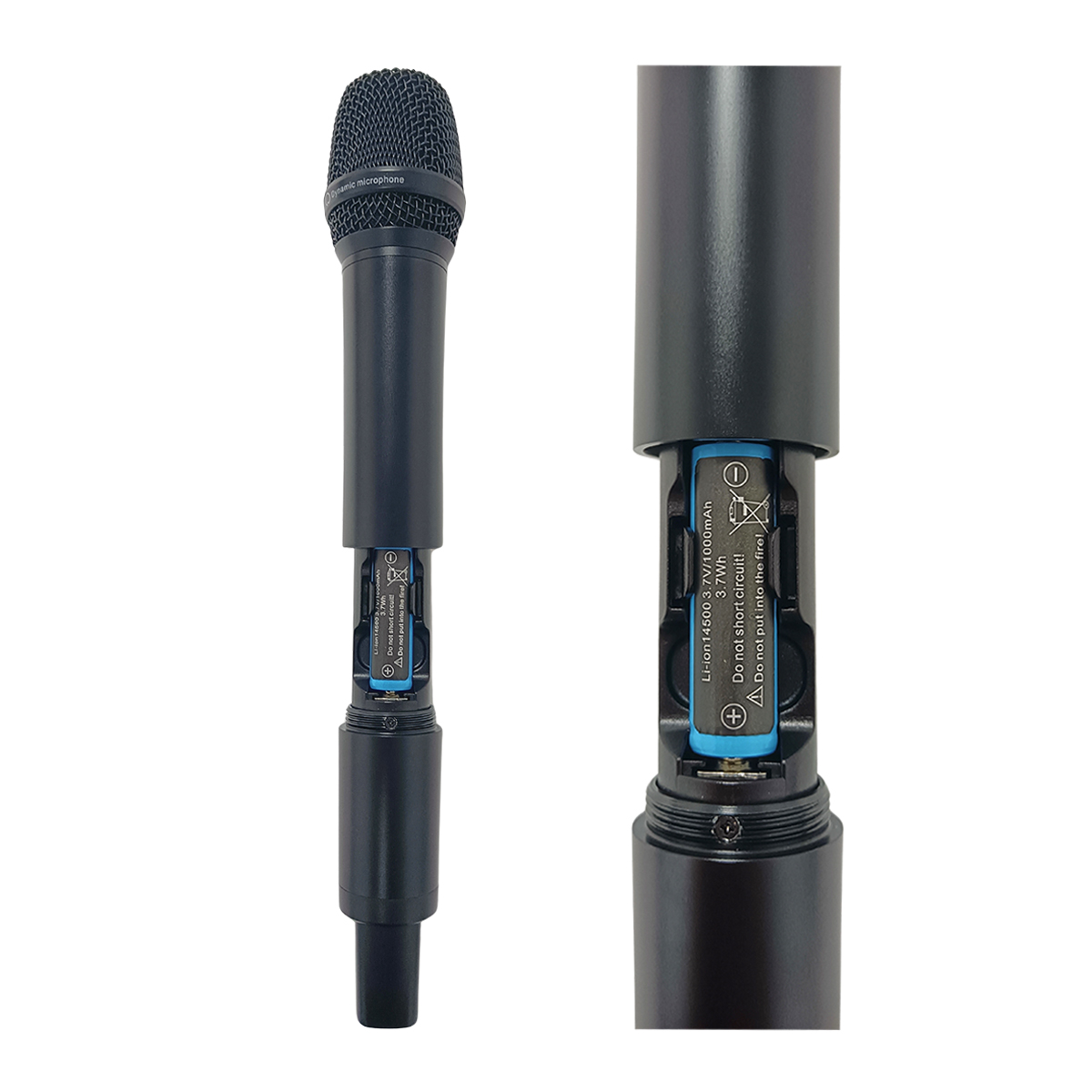

Handheld mic comes with one piece of rechargeable 1000mAh battery, battery life up to 10 hours.
Bodypack supports 15V voltage, compatible with lavalier/headset and may connect to small diaphragm condenser mic.
G4/MicF is a high-end wireless microphone system for large stage performance, events, church, singer singing, public speaking etc.
It uses a latest UHF transmisson technology to ensure high fidelity clear sound.
True diversity system is most likely possible to avoid drop-out in long distance transmission, range up to 984 feet (300m)
Strong an-ti interference ability, 20 sets can be used at once.
It has auto scan ,spectrum scan features to help you find cleanest surrounding frequency.
TFT high definition display, on/off logo can be customized for transmitter/receiver.
Receiver has equalizer feature , user can adjust treble, alto and bass accordingly.
UHF range, 60MHz bandwidth allows 32 pre-set channel groups and 6000 frequencies to be used.
Set ID code 01-99, then sync , transmitters can easily identify the corresponding receivers, useful when you use multiple devices together.
May use bridge cable as replacement of antenna, antennas may supply power, can connect directly to antenna combiner’s wings.
Handheld mic comes with one piece of rechargeable 1000mAh battery, battery life up to 10 hours.
Bodypack supports 15V voltage, compatible with lavalier/headset and may connect to small diaphragm condenser mic.
Quantity
-
DetailModel: G4/MicA
True Diversity
Operating Range: 300m, 984ftSpecifications

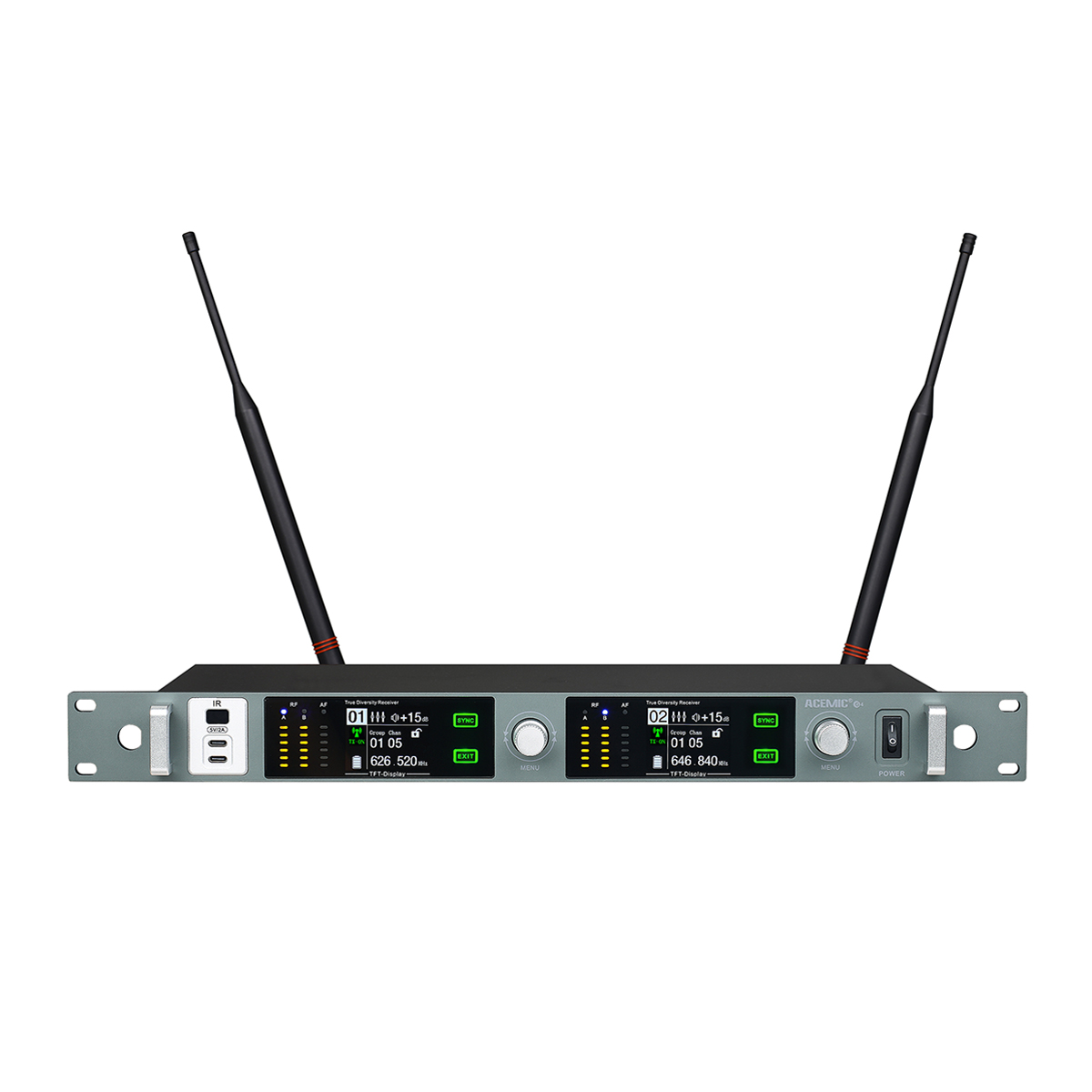

Frequency Range: UHF 600-937 MHz (region dependent)ReceiverFrequency Range：UHF 610-698 MHz

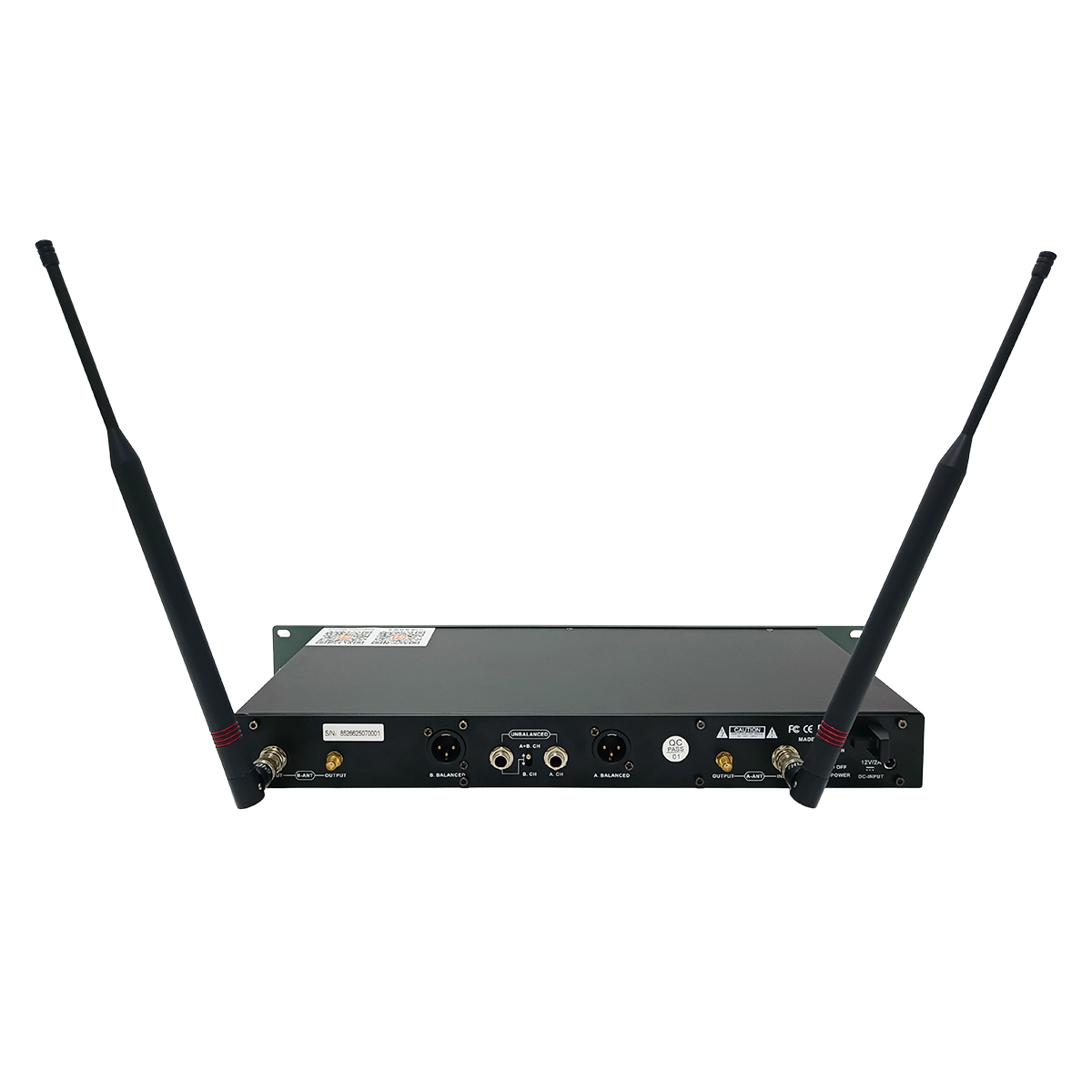

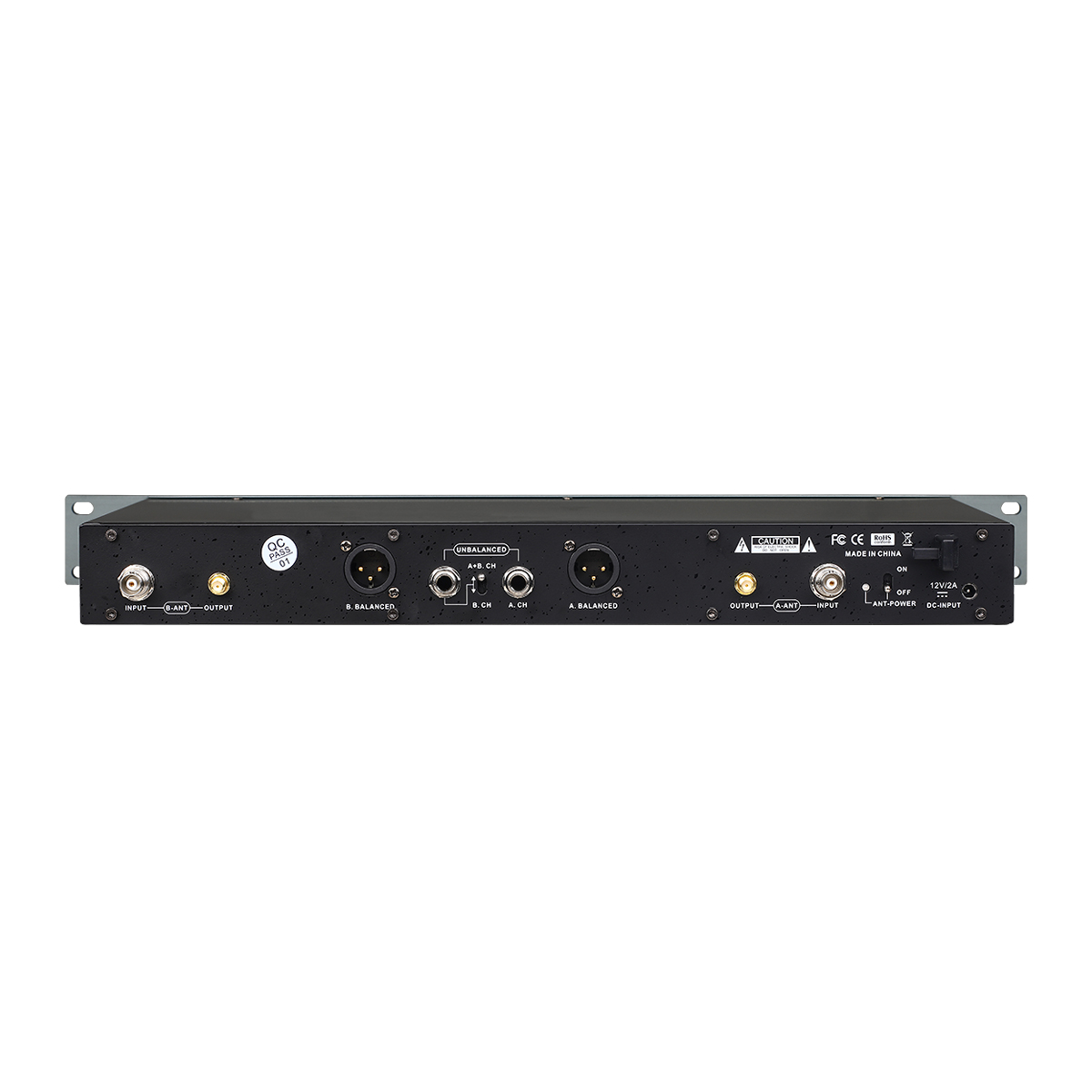

(610-640 MHz Optional), (USA: 902-928 MHz, ROK: 925-937 MHz)Frequency Bandwidth：42MHz/60MHzMaximum Number of Channels：6000Receiving Sensitivity：-105dBm/S/N=12dBFrequency Stability：+-10PPMAntenna Input ：2*BNC/50ΩAntenna Output：2*SMA/50ΩImage Rejection：>100dB3rd Order IMD Suppression：>75dBBlock Suppression：>75dBAdjacent Channel Rejection：>110dB (+-200KHz)Signal-To-Noise Ratio：≥110dBPower Supply：1500mAHandheld TransmitterFrequency Range：UHF 610-698 MHz(610-640 MHz Optional), (USA: 902-928 MHz, ROK: 925-937 MHz)Frequency Bandwidth：88MHzRF Power：10/30mWMax Frequency Deviation：65KHzPower Requirements：1*3.7V/14500 Li-ion Battery or 1*1.5V AA BatteryBattery Life: 9-10 hrs (high power level); 13-14 hrs ( low power level)Bodypack TransmitterFrequency Range：UHF 610-698 MHz(610-640 MHz Optional), (USA: 902-928 MHz, ROK: 925-937 MHz)Frequency Bandwidth：88MHzRF Power：10/30mWMax Frequency Deviation：65KHzPower Requirements：2*1.5V AA batteryBattery Life：8-10 hours

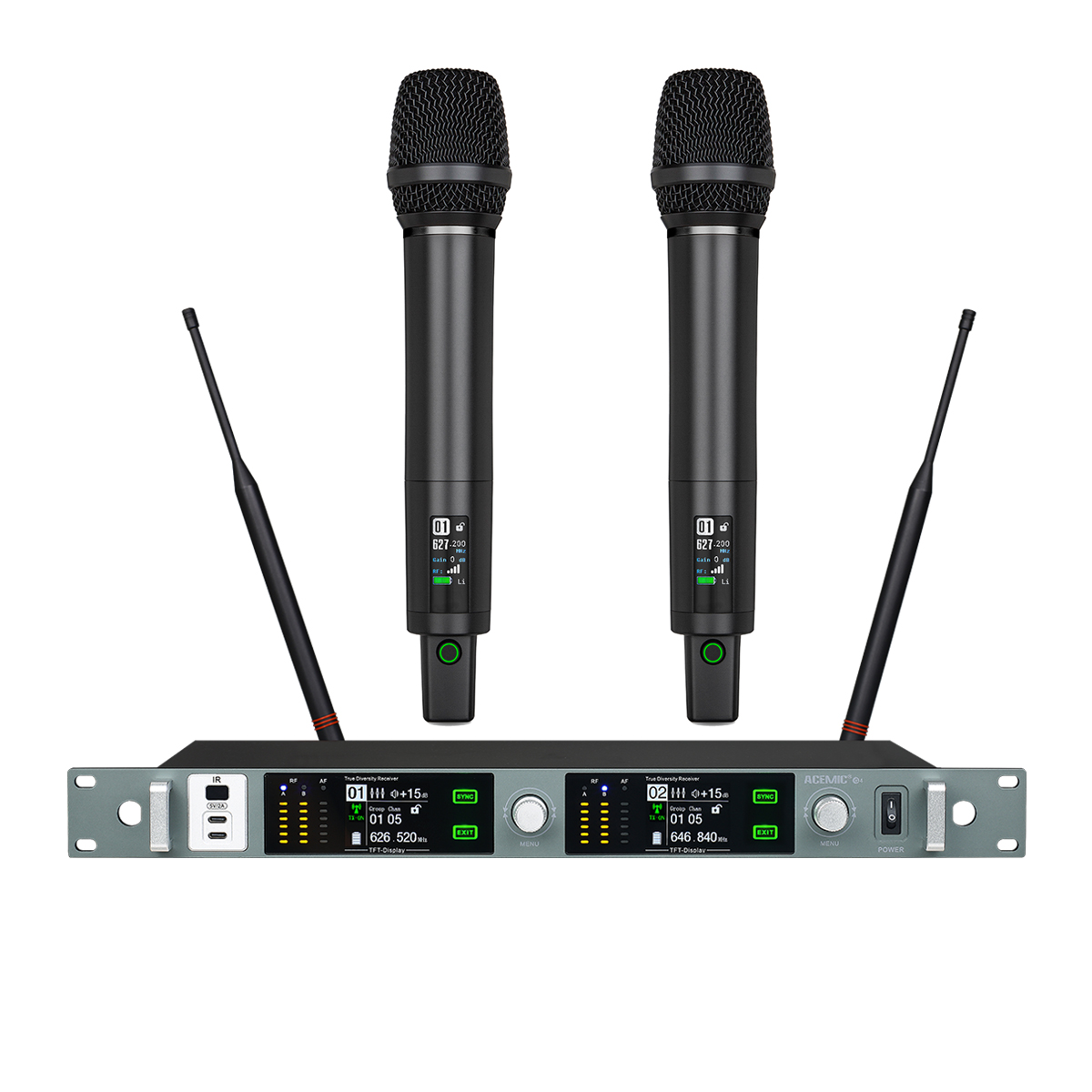

Product DescriptionAcemic G4/MicF Wireless Microphone System – Dual Channel True Diversity UHF System for Large StageThe G4/MicF wireless microphone system is a premium dual channel UHF system designed for professional large-scale stage performances, concerts, churches, live events, and public speaking. Engineered with advanced transmission technology, this system ensures high-fidelity sound reproduction, exceptional stability, and reliable performance across demanding environments.Operating in the UHF 610–690 MHz frequency band, the G4/MicF utilizes a true diversity system to virtually eliminate dropouts, even in long-range applications. With an impressive operating distance of up to 300 meters (984 feet) line of sight, it delivers consistent, interference-free audio for performers, speakers, and entertainers who demand flawless clarity.Featuring auto scan and spectrum scan functions, the system intelligently locates the cleanest available frequencies, while its anti-interference design allows up to 20 systems to operate simultaneously without signal conflicts. A TFT high-definition display on both the transmitter and receiver provides clear status monitoring, while customizable on/off logos enhance professional branding.The receiver is equipped with an integrated equalizer (EQ), enabling users to fine-tune treble, alto, and bass for optimal sound shaping. Offering 32 preset channel groups and 6000 selectable frequencies across a 60 MHz bandwidth, the G4/MicF provides remarkable flexibility for any stage or venue.For large setups, the system supports ID code synchronization (01–99) to quickly pair transmitters with corresponding receivers, ensuring smooth operation with multiple devices. Antennas can supply power directly, and the unit is compatible with antenna combiners for expanded system integration.The included handheld transmitter features a rechargeable 1000mAh battery with up to 10 hours of continuous use, making it ideal for extended performances. The bodypack transmitter supports 15V power and can connect to lavalier, headset, or small-diaphragm condenser microphones, providing versatile options for different applications.Key Features:- Dual channel true diversity wireless microphone system
- UHF 610–690 MHz, 60 MHz bandwidth, 6000 selectable frequencies
- Extended 300m (984 ft) operating range with stable performance
- Supports up to 20 systems simultaneously with strong anti-interference
- Auto scan and spectrum scan for optimal frequency selection
- TFT HD display with customizable on/off logo
- Built-in EQ adjustment for treble, alto, and bass
- ID code sync (01–99) for easy multi-system management
- Handheld transmitter with 1000mAh rechargeable battery, 10-hour use
- Bodypack compatible with lavalier, headset, or condenser microphones
- Ideal for large stage performances, concerts, worship, events, and public speaking
The Acemic G4/MicF wireless microphone system combines cutting-edge wireless technology with professional-grade audio performance, delivering the reliability and sound quality required for today’s most demanding live environments. -
